Eaton’s Crouse-Hinds

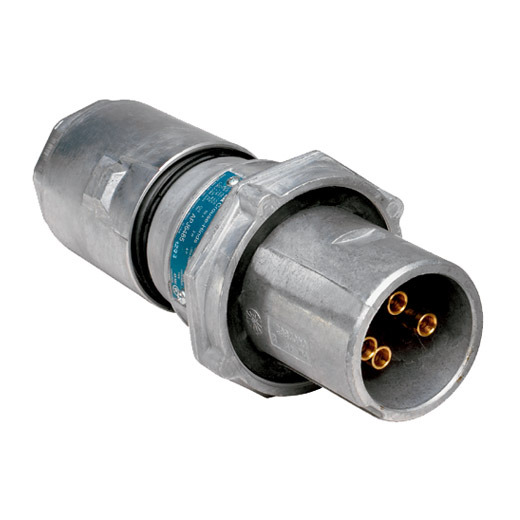

Arktite® APJ, APR, AR and ARE Series 30A Plugs, Receptacles and Connectors
|
Features
• Circuit breaking: plugs through 100 ampere rating may be disconnected under load; 150-400 ampere units are for service disconnect use only
• Circuit breaking: plugs through 100 ampere rating may be disconnected under load; 150-400 ampere units are for service disconnect use only
• Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate, and provides for positive polarization
• Extra wide electrical spacing allows for maximum safety
• Insulator materials are the result of intensive testing; selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
• A variety of installations is possible due to the availability of several types of back boxes
• Designed to withstand rough usage and the effects of adverse environments
• Reversible interiors, 30, 60 and 100 ampere (except 30 and 60 ampere, 5-pole) Arktite plug and receptacle interiors are interchangeable using a screwdriver; this makes it possible to feed a normally de-energized receptacle from an energized plug with usual Arktite safety; no energized contacts are exposed
Arktite® plugs and receptacles are used:
• To supply power to portable electrically operated devices such as motor-generator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment
• Where temporary power is needed, such as at trailers, building units, heavy machinery
• Wherever electrical loads must be quickly disconnected from power source
• To supply power to portable electrically operated devices such as motor-generator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment
• Where temporary power is needed, such as at trailers, building units, heavy machinery
• Wherever electrical loads must be quickly disconnected from power source
Styles - Style 1 or Style 2
Configurations - Style 1: 2W 2P, 3W 3P, 4W 4P, 5W 5P; Style 2: 2W 3P, 3W 4P, 4W 5P
Cable Diameters - 0.39-1.20, .500-.875, .875-1.375 (Plug); 0.39-1.20, 0.87-1.20; .500-.875, .875-1.375 (Connector)
Hub Sizes - 1/2"; 3/4"; 1" (Receptacle with Back Box)
Voltage - 600VAC/250VDC, 50-400 Hz
Receptacle Housing, Plug and Cord Connector Body Material - High impact strength copper-free aluminum
Back Box Material - Cast aluminum
Reversed Contacts - Optional
Reversed Contacts - Optional
