Electrical Cable Supply

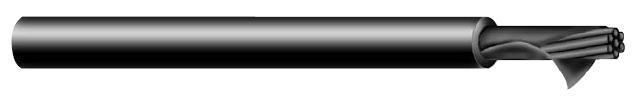

Stage & Lighting Cable
|
Features
• CSA PCC / UL SC cables are suitable for continuous submersion in water.
• Sunlight-resistant
• Designed to withstand severe environmental conditions
• Withstands exposure to oil,acids, alkalies, heat, flame, moisture and chemicals
• Meets or exceeds flame test requirements of MSHA, CSA and UL
• Indent printed
Industry Approvals
• CSA Approved TYPE PPC 105C 600VOLT FT5
• UL listed Type SC, -50ºC to +105ºC 600V
• For use in accordance with NEC Articles 520,525, and 530, indoor and outdoor locations
• OSHA acceptable
• Meets or Exceeds Flame Test Requirements of MSHA, CSA (FT-5), and UL (VW-1)
• Excellent flexibility
• Excellent resistance to oil, solvents, ozone, aging
and abrasion
More information
Application
CSA Type PCC / UL Type SC Entertainment Cables are manufactured using flexible stranded (30 AWG) annealed bare copper conductors per ASTM B-172,in sizes 8 AWG through 4/0 AWG fully annealed. A polyester or paper tape separates the copper conductor from the jacket. The black jacket is a special,bonded,heavy duty EP/Hypalon two layer construction,thermoset jacket .
Applications
• Portable power and lighting applications in the entertainment industry including activities such as theatre, television, night clubs, motion pictures, mobile communication vans, spotlights, sound systems, and other applications that would require temporary power.
• Type SC cables provide excellent flexibility, resistance to oil, solvents, ozone, aging, abrasion and are flame retardant.
