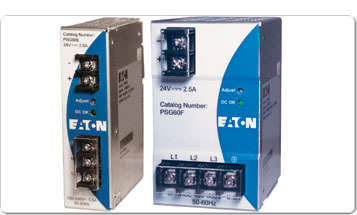

The PSG family includes eight DIN-rail mounted power supplies with varying input and output ratings:

85 – 264 Vac Input Models:
PSG60E — 2.5 amperes
PSG120E — 5 amperes
PSG240E — 10 amperes
PSG480E — 20 amperes

320 – 575 Vac Input Models:
PSG60F — 2.5 amperes
PSG120F — 5 amperes
PSG240F — 10 amperes
PSG480F — 20 amperes

The PSG series was designed with your needs in mind. With comprehensive safety features, high reliability and a small footprint, the PSG is sure to give you a competitive advantage in your markets.

Features, Benefits and Functions:

• Universal input voltages: 85 – 264V AC for single-phase units, 320 – 575V AC for 3-phase units.
• Rugged aluminum housing stands up to harsh environments.
• Current surge (power boost) of 1.5 times nominal current for 1 sec. allows branch protection and powering of high pick-up loads.
• Wide operating temperature range: -20°C to +75°C (derating above 50°C).
• Adjustable DC voltage output.
• LED indicating light for DC OK simplifies troubleshooting.
• Compact size, with common depth and height across all models allows for common panel depths and family consistency.
• MTBF up to 800,000 hours ensures uptime and reliability.
• Heavy duty screw terminals with finger-safe protective cover allow use of ring-lug terminals.
• All-metal DIN rail mounting hardware.
