MUKI LHBP
|

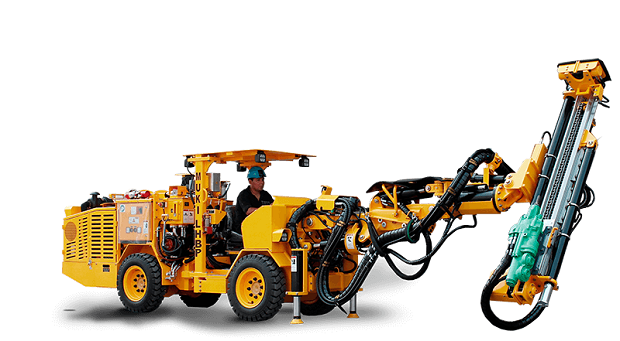

MUKI LHBP is an electro-hydraulic rig for long hole drilling, it has an hydraulic boom, 3AP model, with parallel holding.
MUKI LHBP is an electro-hydraulic rig for long hole drilling, it has an hydraulic boom, 3AP model, with parallel holding.
Long hole drilling feed 2500 series with 2 Stingers and hydraulic clamp. Equipped with Montabert drifter HC 50 (13 kW).
Full 360°, horizontal coverage with parallel holding is 2.45 m; maximum length of drilling up to 15m, diameters up to 74 mm bit, Reamer 127 mm.
Chassis for heavy duty application, articulated 4WD, self-propelled with diesel, electro hydraulic system for drilling.
Applications:
• Sub Level Caving, benching
• Sub Level Stoping
• VCR and cable bolting
