ROCK-TECH

RAPTOR 44 XP

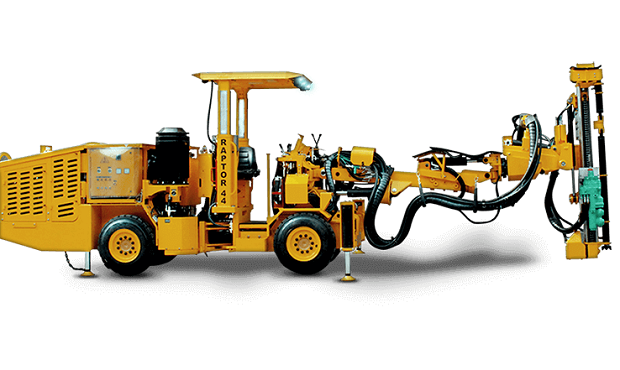

RAPTOR 44 XP is an electro-hydraulic rig for long hole drilling, It has an hydraulic boom, 4AP model, with automatic parallel holding.
RAPTOR 44 XP
RAPTOR 44 XP is an electro-hydraulic rig for long hole drilling, It has an hydraulic boom, 4AP model, with automatic parallel holding.

8000 series, Long Hole Feed, with 2 Stingers and hydraulic motor and chain style. BARYCENTRE system to synchronize automatically the drilling and rotation axes; this system facilitates the drilling of radial and parallel holes with reduced times for positioning. Equipped with a Montabert Drifter HC 95 with 22 kW and Back –Hammering rods extractor, the most modern rock drill in the market.

Chassis for heavy duty application, articulated 4WD, self-propelled with Deutz diesel motor, Poclain hydrostatic transmission and electro hydraulic system for drilling.

Applications:

• Sub level and benching.
• Block Caving.
• VCR and Cable Bolting application.
