Sling-Choker Mfg. (Timmins) Ltd.
Baker Hughes SPS Pumps
|
Applications
Borehole mining
CO2 injection/booster
CO2 sequestration
Condensate transfer
Crude oil boosting/transfer
Dust suppression
Geothermal
Hydraulic power fluid boosting
Jet pumping
Lean amine circulation
Mine dewatering
NGL boosting/transfer
Offshore facilities fluid handling
Pipeline boosting
Process fluids transfer
Produced water disposal/injection
Salt dome leaching
Seawater disposal/waterflooding
Wash water circulation
Water transfer
Applications
Borehole mining
CO2 injection/booster
CO2 sequestration
Condensate transfer
Crude oil boosting/transfer
Dust suppression
Geothermal
Hydraulic power fluid boosting
Jet pumping
Lean amine circulation
Mine dewatering
NGL boosting/transfer
Offshore facilities fluid handling
Pipeline boosting
Process fluids transfer
Produced water disposal/injection
Salt dome leaching
Seawater disposal/waterflooding
Wash water circulation
Water transfer
Improved surface pumping solutions
Long-lasting, highly-reliable, environmentally-friendly pumping solutions

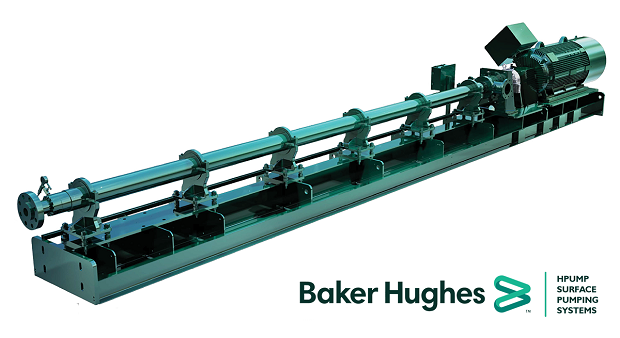

Baker Hughes' SPS pumping systems provide versatile, low-maintenance alternatives to many high-speed integral geardriven centrifugal (OH6), positive displacement (PD), and vertical-turbine pump (VTP) models
Pre-packaged units
Baker Hughes' SPS pumps are available in gas, electric or dieselpowered models
Capability to handle up to 2,500 gpm (85,000 BFPD) and discharge pressures up to 6000 psi
Delivered to the job site pre-assembled—only requiring suction flange, discharge flange and power hookups
The Easily Modified SPS Frame (EMF™) is pre-wired with instrumentation and cabling terminated in a central junction box. This proprietary frame, paired with the versatile design of Baker Hughes' pumps, allows for easy on-site installation and maintenance with minimal site preparation
Trouble-free service
Designed for years of trouble-free operation
There are no V-belts or packing to service
Routine maintenance consists of a quarterly lubricant change and component check
SPS units generate little to no vibration-related wear or stress on piping components and they are available with a variety of mechanical seal options (including API 682 seals)
The modular design makes SPS units suitable for a wide variety of applications, from routine water injection to mine dewatering and leaching operations
Mine Water Management
Mine dewatering is usually undertaken to ensure the stability of mine walls during and after excavation, or to optimize mine production and increase operational efficiencies
In many mines, the amount of water that must be pumped exceeds the mines’ water consumption requirements. In this case, a majority of the excess water is discharged to Baker Hughes' surface SPS water pumping systems, reinjected into aquifers, applied to crop land, or piped to power plants
Cavern Leaching
There are numerous cavern leaching and/or formation jetting (borehole mining) applications
In salt dome leaching processes, Baker Hughes' SPS pumps are frequently used to circulate water, absorbing the salt. A large underground cavern is formed after the salt has been leached and the water is removed
Baker Hughes' SPS pumps are also used to re-inject materials such as oil, natural gas, hydrogen gas, or even hazardous waste into the empty caverns for storage
