Backsense Radar

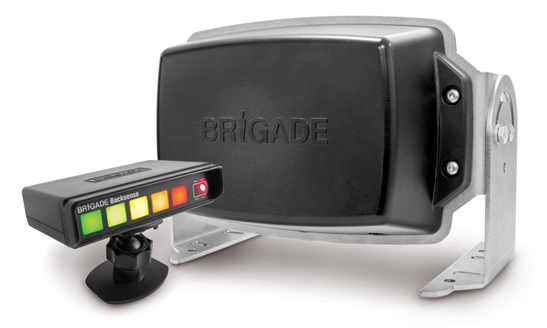

Backsense® heavy-duty radar sensor systems are designed to detect people and objects in blind spots, significantly reducing accidents. They detect stationary and moving objects, providing the driver with in-cab visual and audible warnings – alerting the operator whose attention cannot be focused on all danger areas. Backsense® obstacle detection sensors work effectively in harsh environments and in poor visibility including darkness, smoke and fog.



Backsense® radar sensors are available in fixed detection range models and fully programmable models allowing bespoke detection areas and the ability to calibrate-out fixed objects or bodywork.



Features & Benefits



Backsense® radar uses Frequency Modulated Continuous Wave (FMCW) technology, transmitting a continuously varying radar frequency signal with unique time stamps to each instance of the wave. The time of the returning wave is referenced to the stamp without the radar needing to pause transmitting. This gives more accurate detection than alternative radar products using Pulsed Radar technology that transmit a burst of radar and then listen for the returning wave.



Backsense® is available in 3 pre-set width and length models and a fully programmable radar, allowing complete control of the radar beam pattern and detection area.  The spread and length of the beam can be set to the width of your vehicle or beyond (from 2m to 10m (6.5ft -33ft) width and 3m to 30m (10ft-98ft) length) and bespoke detection areas can be set to calibrate-out fixed objects or bodywork.



Unique to Brigade

Frequency modulated continuous wave radar technology

Controlled beam pattern to minimise false warnings

Excellent close-in detection

5 stage audible and easy-to-read visual display

Suitable for both on- and off-road applications

Heavy duty – Designed for severe weather conditions and all terrains

Meets Health and Safety requirements

Unaffected by moisture, dust, vibration, heat, cold, UV, snow, ice, high wind, water and mud



Backsense® OSD (Radar On-Screen Display)



Radar sensor data and camera image combined with Brigade’s Radar sensors minimise both vehicle damage and collisions by informing the driver of the distance between vehicle and obstacles, whether moving or stationary. Ideal for vehicles and machines manoeuvring at low speed.



Working in conjunction with a Backeye® camera monitor system and up to two Backsense® Network radar detection systems (one supplied with the on-screen display module kit), the on-screen display warns the driver of obstacles in the danger zone by overlaying 5-stage audible and visual radar data onto the camera image on the monitor.



• Integration of Brigade’s Backsense® object detection systems and Backeye® camera monitor systems to improve safety

• Up to 2 Radar detection warnings overlaid onto camera image on in-cab monitor

• Reduce driver stress and distractions as all information is in one place.



Backsense® IP69K Water and Dust Proof Display



Radar heavy duty display works in conjunction with the IP69K sensor BS-9000 (one supplied with BS-9000-WD) to provide ultimate water and dust/sand protection. It’s protective design allows it to be used in any application, even with open cab vehicles exposed to temperatures from -40°C to 85°C. The Radar display can be connected to one sensor and be set to the width of 2m to 10m (6.5ft – 33 ft) and 3m to 30m (10f – 98ft) in length.



• 5 stage audible and easy-to-read visual display

• Suitable for both on- and off-road applications

• Heavy duty – designed for severe weather conditions and all terrains

• Unaffected by moisture, dust, sand, vibration, heat, cold, UV, snow, ice, high wind, water and mud



Backsense® Network Radar System



Brigade’s Backsense® radar sensor systems detect people and objects in vehicle blind spots, significantly reducing accidents. They work effectively in harsh environments and when visibility is poor including darkness, smoke and fog.



Due to the number of complex blind spots on a vehicle, a single radar cannot always provide the detection you need and numerous in-cab displays for multiple radars can be more of a distraction than a benefit.



Brigade’s Backsense® Networked Radar allows you to connect and link up to 8 radars to cover all blind spots around the machine.



Network up to 8 sensors

Frequency Modulated Continuous Wave radar technology (FMCW)

Filtration of data to remove false alerts

Extremely rugged design for severe weather conditions and all terrains

Connection via CAN gateway or other customer-supplied Network Host
