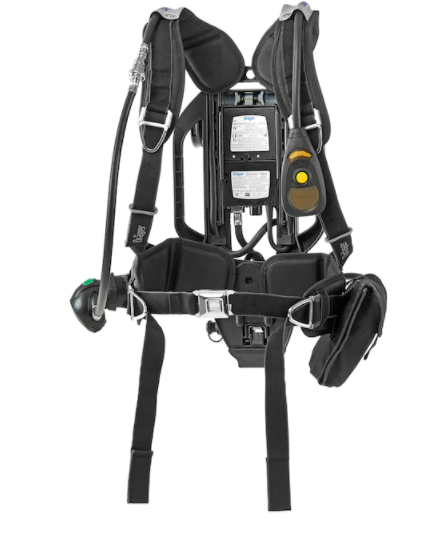

PSS 7000 NFPA-Certied SCBA

Before you can protect the lives of others, you have to protect yourself. The Dräger PSS® 7000 SCBA breathing apparatus provides unmatched comfort, durability and safety in the harshest environments. The ergonomic PSS® 7000 combines trusted pneumatics, flexible fit, and quick cylinder connection—freeing you to concentrate on the task at hand.



Highest levels of comfort and durability

Compression-molded comfort padding provides high temperature performance and exceptional wear resistance, plus an anti-slip surface that keeps the harness in position. Designed to be worn on the hip, not shoulder, the PSS 7000 gives maximum flexibility while crawling and climbing. The material is easy to clean and disinfect, and is highly resistant to chemical and mechanical damage.



Built to satisfy the most rigorous demands

​Based on feedback from firefighters throughout North America, the Dräger PSS 7000 SCBA with the Sentinel 7000 monitoring system satisfies the most rigorous demands of today's complex fire grounds. first responders. Backed by a 15-year, bumper-to-bumper warranty, the Dräger PSS 7000 distinguishes itself from other SCBAs in the marketplace with ergonomic performance, clean-ability, and toughness.



Hi-grip, anti-slip inner surface harness

Stays securely in place and cooling channels in the shoulder straps and waist belt reduce the likelihood of compression burns.



Innovative harness system provides unmatched comfort and durability

The Dräger PSS 7000 SCBA is designed so the heaviest components sit at a lower center of gravity to increase stability and balance, allowing the wearer to work more effectively with less fatigue. The PSS 7000 includes an adjustable harness suspension system that provides the ultimate in comfort and extended wear. Durable webbing and advanced compression-molded comfort padding offer up to 6.5-times higher abrasion resistance than traditional padding. The material surface is easy to clean and disinfect with a highl resistance to chemical and mechanical damage.



The harness has a high-grip, anti-slip inner surface that stays securely in place without a chest strap or having to over-tighten the shoulder straps. Cooling channels in the shoulder straps and waist belt reduce the likelihood of compression burns. A stainless-steel, harness-friction buckle makes the SCBA easy to don and doff.



Ergonomic 3 position backplate allows freedom of movement

Self-adjusting and pivoting waist belt is designed to automatically lengthen and pivot to mirror your movements, allowing unrestricted movement as you walk, crawl, or climb.



Ergonomic three-position backplate allows freedom of movement

The Dräger PSS 7000 is designed to move with the wearer allowing unrestricted movement while walking, crawling, or climbing. The backplate automatically lengthens and pivots to mirror wearer movements. The unique, self-adjusting and pivoting waist belt keeps the SCBA on the hips when a firefighter reaches, preventing your coat from riding up.



To reduce back strain, the SCBA's weight is designed to ride on the hips. The three-position, carbon-fiber composite backplate adjusts to comfortably fit different torso lengths.



A slide-and-lock harness mechanism allows the harness and waist belt to be connected or removed from the backplate quickly without tools. To minimize the risk of snagging or damage, supply hoses are integrated neatly into the backplate.



Reflective, luminescent shoulder straps

Reduces potential snag points and enhances the ability to be seen in the darkest situations.



Rapid, secure cylinder change-outs save precious time

The PSS 7000 has a lock-and-load system that lets colleagues securely change out cylinders quickly. A proven, quarter-turn QuickConnect adapter allows quick and easy attachment of the cylinder to the reducer, saving time compared to conventional threaded reducer hand-wheel-and-cylinder CGA connections. QuickConnect features a safety interlock system that prevents disconnection at pressures above approximately 70 psi.



Carry handles

Rated up to 600 pound pull force to use as a drag handle.



Dräger Sentinel 7000–Real-time monitoring

The Sentinel 7000 electronic monitoring system provides options to satisfy the needs of any fire department. Incorporating a centralized power supply and pressure sensor module within the backplate, the robust system combines maximum component protection with balanced weight distribution for reduced physical stress.



Housed in impact-resistant, water-resistant casings, the Sentinel 7000 demonstrates excellent reliability on the fire ground.



An electronic gauge provides real-time monitoring of essential information, including:



A personal alert safety system (PASS) device

Intuitive push-button operation for ease of use

Configurable settings to suit individual preferences

Data logging for improved post-incident analysis

Accurate, continuously updated digital display of pressure and time to EOSTI activation (time based on dynamic breathing rate)

Battery status display

360° visual and audible alarms triggered when the PASS is activated

Automatic self-tests and system tests



Slide-and-lock harness

Allows harness and waist belt to be connected or removed from the backplate quickly-without tools. Supply hoses are integrated into the backplate to minimize the risk of snagging or damage.



Quick connect cylinder attachment

Because time is critical, Dräger designed this SCBA with a change-out method that only takes 10 seconds! This optional Quick-Connect cylinder system ensures rapid cylinder exchange in the field and at the workbench.



Dräger Sentinel 1500—Modular design helps increase personal safety

​The Dräger Sentinel 1500 is a fully integrated, electronic signal and warning unit with a modular design that allows you to position the PASS device at your waist or shoulder, based on your preference.



With a trusted backlit pneumatic style transmitting gauge, the Sentinel 1500 increases personal safety because it:



Sends a wakeup signal to the paired PASS device and HUD when the cylinder is opened, ensuring that the system is ready before you enter a hazardous zone

Includes a configurable alarm that alerts you when absorbed temperatures reach a critical level

Draws attention to a firefighter in distress by generating distinctive visual and audible alert signals

Decreases snagging hazards by reducing the need for additional cables or wires
