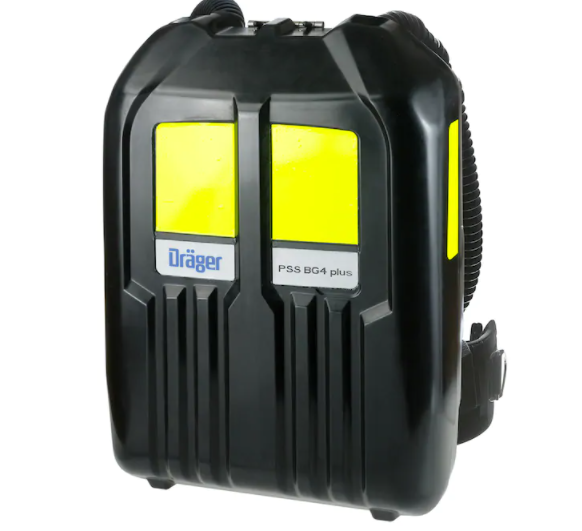

Dräger PSS® BG 4 plus - Breathing Apparatus

Specially designed for demanding tasks, The Dräger PSS® BG 4 plus closed-circuit breathing apparatus combines uncompromising safety with outstanding respiratory protection and wearer comfort. Innovative in design, it provides the wearer with up to four hours of breathing air in toxic environments.



Dräger PSS BG 4 plus

Whenever emergency teams are saving lives or extinguishing fires, above or below the ground, the Dräger PSS BG 4 plus comes into its own. Whether used during rescue or fire fighting missions in mines, tunnels or underground train ducts, or in assignments with long access routes, the closed-circuit breathing apparatus is the first choice. More than 25,000 professional users rely on the Dräger PSS BG 4 worldwide.



Optimized in conjunction with our customers

Our products must meet the precise needs of the user and, for this reason, we involve our customers in the development process. Modifications to the proven Dräger PSS BG 4 are the result of practical experience and constant monitoring to ensure the highest quality standards. We listened to our customers and implemented their requirements in the new Dräger PSS BG 4 plus. Numerous improvements and new accessories have increased safety and durability and further improved the ease of servicing. The modifications are available individually or a as a practical retrofit set upon request.



Excellent suitability for extended use

The slight positive pressure breathing circuit protects the wearer by preventing hazardous substances from entering the sealed breathing system. Depending on the application, the duration of use is up to four hours. A CO2 absorber removes carbon dioxide from the exhaled air. At the same time the breathing air is enriched with oxygen from the oxygen cylinder. Before the regenerated breathing air is inhaled again it flows through the breathing air cooler.



Product enhancements

Both the minimum valve, which enriches the breathing air with additional oxygen upon demand, and its attachment clip have been treated with a special coating to protect against corrosion. A redesigned clip simplifies the fitting of the valve. The area around the pressure reducer has been reinforced and additional reinforcement protects the carrying plate, providing greater stability when handling the unit complete with oxygen cylinder. To reduce the temperature of the inhaled air and minimise physical stress to the wearer, the breathing air cooler can be filled with ice.



Practice-oriented innovations

Newly developed heat protection for the breathing hose and housing are also optionally available to further reduce the temperature of the inhaled air. A T-piece with water trap can be retrofitted to the facemask to prevent water from collecting in the flow area of the device. Any liquid discharged into the breathing circuit from the drain valve is optionally collected in a super absorbent fleece. The fleece is designed for single use and is easily disposed.



Cooler breathing air without ice

An alternative cooler which requires no ice and makes separate cooling logistics obsolete is also available. Reactivated after only 5 hours, the cooler offers unlimited use and is easily retrofitted. An improved spring clip ensures its safe attachment.



Simple CO2 disposal

Complete with integral dust filter, the flow-sensitive CO2 absorber is available as either a single-use absorber or refillable cartridge. Fitted with a newly designed spring clip, the CO2 absorber offers increased spring durability. The position and size of the breathing hose connectors have also been optimized for easier handling during assembly. For hygienic storage the single-use absorbers are available in a sealed bag.



Proven wearer comfort

​The ergonomically shaped carrying plate, the low weight and the proven harness with adjustable shoulder straps and easy to use "pull-forward" design provide more freedom of movement with less effort. The practical breathing hose routing across the shoulders ensures optimum balance on the wearer’s back.



Perfect respiratory protection monitoring

​The data captured by the Dräger Sentinel II electronic monitoring unit can be transmitted to Dräger PSS Merlin telemetry boards. This electronic monitoring and communications system displays Sentinel data for each of the wearers who are logged on. As a result, entry control personnel are able to view the current status of each of the device wearers and can respond immediately to an emergency.



All functions upon a glance

​The Dräger PSS BG 4 plus is equipped with the Dräger Sentinel II fully electronic signal and warning unit. Controlled via large pushbuttons, it combines a multitude of functions. During use it quickly provides the wearer with important information, thereby reducing the risk potential. Using battery warning thresholds the Dräger Sentinal II reliably indicates current operational status.



Monitoring functions:



Cylinder pressure (analog and digital)

Remaining duration of use (time remaining until residual pressure warning)

Temperature indication upon the press of a button

Automatic recording of all mission data Optical and acoustic warning signals:

Residual pressure warning

Two additional selectable electronic alarm thresholds

Automatic alarm for lack of movement

Manual emergency call alarm

Optical and acoustic warning signals:

Residual pressure warning

Two additional selectable electronic alarm thresholds

Automatic alarm for lack of movement

Manual emergency call alarm



High performance soda lime

​Drägersorb 400 has been specially designed for the absorption of CO2 in closed-circuit breathing apparatus which significantly contributes to long-term performance capabilities, especially under the likely conditions of use for the Dräger PSS BG 4 plus. Drägersorb 400 is characterized by a very high abrasion resistance and can, therefore, be used in the apparatus for 6 months, or up to 500 km when stored in the vehicle.



Easy maintenance

​Both the retrofittable vibration protection and the robustly designed locking hinge increase the safety of the Dräger PSS BG 4 plus during transportation. For maximum operational readiness, the Dräger PSS BG 4 plus has been designed to allow the fast assembly and/or removal of device components without special tools.



New in the team: the full-face mask Dräger FPS 7000 RP

The full-face mask Dräger FPS 7000 ideally complements the Dräger Panorama Nova product family. With an improved head harness and available in various sizes, it adjusts perfectly to every face shape. With its dual sealing line, the almost natural field of view and easy-tooperate wiper, ensures a safe tight fit and good all-round visibility. An optional adapter enables the connection of the comfortable CamelBak* drinking system. Liquid only flows through the straw when the integrated biting valve is pressed together by the teeth.



*CamelBak® is a trademark of Camelbak Products, LLC.
