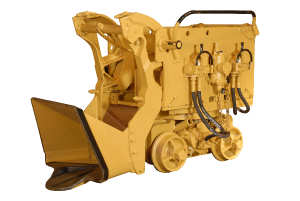

Trident S.A.
21 AC
|
OVERALL LENGTH - 2280MM
BODY LENGTH - 1310MM
MACHINE HEIGHT - 1490MM
OVERALL HEIGHT - 2350MM
DISCHARGE HEIGHT - 1390MM
DISCHARGE LENGTH - 440MM
MACHINE WIDTH - 970MM
WIDTH WITH STEP PLATE - 1100MM
CLEAN UP WIDTH - 2360MM
TRACK GUAGE - 610-915MM
TOTAL MASS - 3275KG
BUCKET CAPACITY - 0.3 cu met
LOADING CYCLE - 7 seconds
LOADING CAPACITY - 1.4 cu met/min
MOTORS - 2xMOD 201
AIR CONSUMTION - 8-9 cu met/min
AIR PRESSURE RANGE - 483-360Kpa
AIR HOSE DIAMATER - 50mm
