WORD International Inc

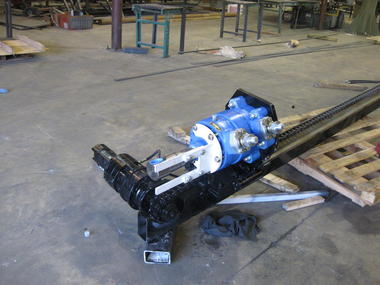

M125 Hydraulic Rotary Head
|
• Hole size: 4"- 18"
• Type of Drilling: DTH, Auger, Rotary
• Flushing: Air/Water/Mud
• CFM Required: 185 - 2500
• Hydraulic Flow: 0 - 165 gpm
• Hydraulic Pressure: 2k-4k
Model: M125
New / Used: New
Manufacturer: Rineer
Application: Anchoring, Augering, Blasting, Fencing, Geothermal Drilling, Large Hole Rock Drilling, Micro Piling, Mining, Mud Rotary, Soil Nailing
• 60 - 250 CID capacity
• Up to 14,400 ft/lb (20,000 Nm) torque capacity
• Through shaft flushing eliminates front-end swivel and gains drill travel
• 10 hydraulic entrance points give immediate torque and smooth operation
• Immediate torque produces favorable un-threading capability
• High technology seals for long life and low maintenance
• Light-weight compared to competitors in equal torque range
• *Four Port, 2-Speed drill motor option available
