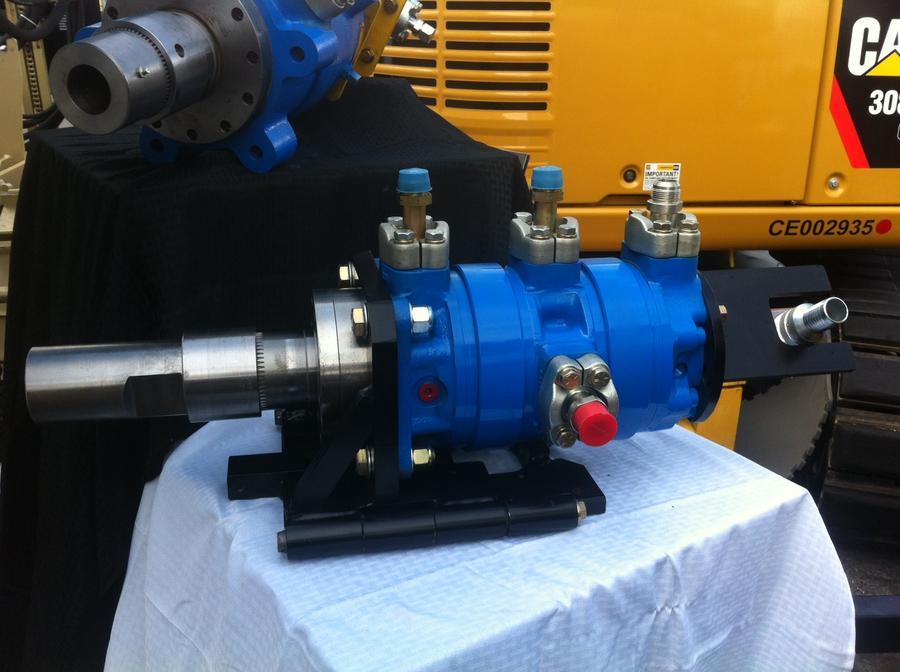

MO37-D4: 2-Speed, Hydraulic Rotary Head

• Hole size: 2-1/2" - 4"

• Type of Drilling: DTH, Auger, Rotary

• Flushing: Air/Water

• CFM Required: 185 - 750

• Hydraulic Flow: 0-100 gpm

• Hydraulic Pressure: 2k-4k

MO37-D4: 2-Speed, Hydraulic Rotary Head

Model: MO37-D4

New / Used: New

Manufacturer: Rineer

Application: Augering, Coring, Drilling, Geothermal Drilling, Micro Piling, Mud Rotary, Soil Nailing

• Two 20 CID displacement sections give high rotary and high torque capability immediately

• Up to 2,186 ft/lb (2,963 Nm) torque capacity

• Through shaft flushing eliminates front-end swivel and gains drill travel

• 10 hydraulic entrance points give immediate torque and smooth operation

• Immediate torque produces favorable un-threading capability

• High technology seals for long life and low maintenance

• Light-weight compared to competitors in equal torque range
