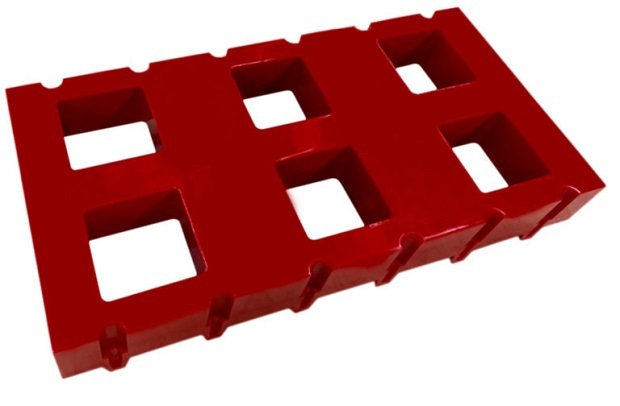

BullDawg Modular Screens
|
BullDawg™ screen panels are manufactured with the highest quality, mine duty, open cast urethanes and additives available anywhere in the world! They are manufactured and supplied in a range of durometers and custom structural designs to meet any and every screening application. From primary scalping to dry and fine wet screening – ASGCO BullDawg™ screen panels are tried and plant proven to be the best.
BullDawg™ screen panels are manufactured with the highest quality, mine duty, open cast urethanes and additives available anywhere in the world! They are manufactured and supplied in a range of durometers and custom structural designs to meet any and every screening application. From primary scalping to dry and fine wet screening – ASGCO BullDawg™ screen panels are tried and plant proven to be the best.
FEATURES & BENEFITS:
Superior impact, abrasion and wear resistance.
The standard for 1′ x 1’ and 1’ x 2′, and custom sizes on request
Exclusive staggered pattern and tapered openings for increased efficiency
Openings from 20mm to 4″
30 to 100mm thick panels; can include dams and diverters
Pin and Leg Systems and Bolt down fastening systems available
Pin & Leg Systems
Modular open-cast Pin & Leg Panels are compatible with all 1′ x 1′ and 1′ x 2′ systems.
Proprietary ASGCO open-cast polyurethane design creates strong yet flexible non-blinding panels
Open-flo system offers reduced areas for binding and increased open areas
Solid pin design for quick, easy installation & removal
Bolt down Systems
Bolt down panels are designed and manufactured to suit the application
Steel-backed reinforcement for high impact resistance
Materials are available to optimize wear life
Options range from softer urethane with greater impact resistance to higher durometers for greater abrasion resistance for fines and wet applications
