Triple Deck High Energy Screener

Specifications S190 Triple Deck

• Power Unit: 125 HP

• Screen Box - Top Deck: 61mm x 1524mm (20' x 5')

• Screen Box - Middle Deck: 61mm x 1524mm (20' x 5')

• Screen Box - Bottom Deck: 5490mm x 1524mm (18' x 5')

• Length All Models: 1716mm (56' - 4")

• Width All Models: 2900mm (9' - 10")

• Height Transport Track: 3.45m (11' - 4")

• Height Transport Wheel 3.73m (12' - 3")

• Weight Track: 36,500kg (80,468 lbs) - est

• Weight Wheel: 38,000kg (83,775lbs)

Specifications S130 Triple Deck

• Power Unit: 100 HP

• Screen Box - Top Deck: 4270mm x 1524mm (14' x 5')

• Screen Box - Middle Deck: 4270mm x 1524mm (14' x 5')

• Screen Box - Bottom Deck: 3660m x 1524mm (12' x 5')

• Length All Models: 1509mm (49' - 6")

• Width All Models: 30mm (9' - 10")

• Height Transport Track: 345mm (11' - 4")

• Height Transport Wheel 373mm (12' - 3")

• Weight Track: 29,000kg (63,933 lbs) - est

• Weight Wheel: 25,000kg (55,115 lbs) - est

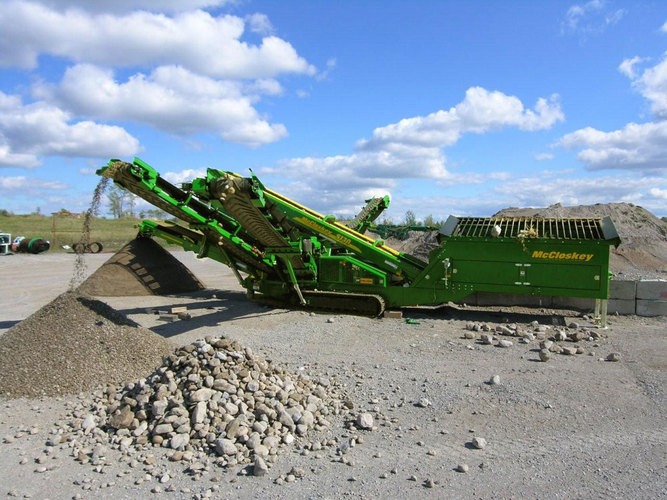

Triple Deck High Energy Screener

The McCloskey Tripledecks (TD) boast an array of features and benefits which elevate the models above all the competitors in its class. The S190 TD has the highest combined true screening area across three decks, whilst the S130 TD has comparable production capacity to its competitor's larger models at a far more cost effective price.

This class leading screening area, along with it high energy screening action (combination of optimised screenbox weight, shaft speed, and screen amplitude dynamics) ensure that the McCloskey Tripledeck models are the superior choice in aggregate material screening.

The McCloskey Tripledeck models are uniquely produced with a cross conveyor, and a fully hydrualic fold fourth conveyor as standard. This reduces set up time, the need for lifting equipment, and prevents damage or bending when moving the machine, or when setting up with manual lifting gear.

With quality components throughout, the McCloskey Tripledecks offer a reliable solution to the demands of customers application needs.
