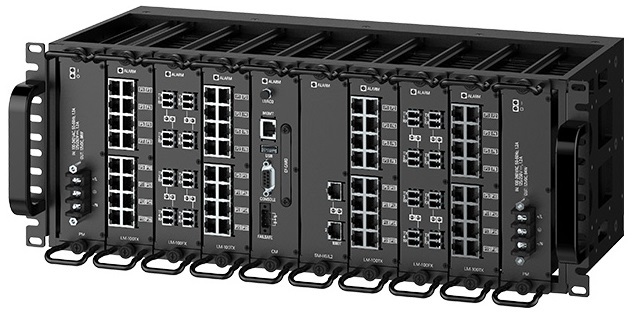

RUGGEDCOM RX5000
|
The RUGGEDCOM RX5000 integrated switch and router is a high-port-density Ethernet routing and switching platform designed to operate in harsh environments. This integrated switch and router can withstand high levels of electromagnetic interference, radio frequency interference, and a wide temperature range of –40°C to +85°C. This platform is designed to meet the challenging climatic and environmental demands found in utility, industrial, and military network applications.
• Up to two 10 Gigabit uplinks
• Up to 24 Gigabit ports
• Up to 96 10/100TX copper ports
• Up to 48 100FX optical ports
• Long-haul optics allow distances up to 90 km
• Multiple connector types (ST, MTRJ, LC, SC)
Cybersecurity Features
• Integrated router/firewall/VPN
• Stateful firewall with NAT
• Full IPSec virtual private networking
• VPN with 3DES, AES128, AES256 support
• Substation Automation Software RUGGEDCOM CROSSBOW for NERC CIP cybersecurity compliance
• RADIUS centralized password management
• Multilevel passwords
• SSH/SSL encryption
• Enable/disable ports, MAC-based port security
• Port-based network access control (802.1x)
• VLAN (802.1Q) to segregate and secure network traffic
• SNMPv3 encrypted authentication and access security
Rugged Rated for Reliability in Harsh Environments
• Immunity to EMI and high-voltage electrical transients
- Zero-Packet-Loss™ Technology
- Meets IEEE 1613
(electric utility substations)
- Exceeds IEC 61850-3
(electric utility substations)
- Exceeds IEC 61800-3
(variable-speed drive systems)
- Exceeds IEC 61000-6-2
(generic industrial environment)
- Exceeds NEMA TS-2
(traffic control equipment)
• –40°C to +85°C operating temperature (no fans)
• Conformal coated printed circuit boards (optional)
ROX™II Software Features
• Next generation of ROX™
• Layer 3 switching at wire speed
• Simple plug and play operation—automatic learning, negotiation, and crossover detection
• MSTP 802.1Q-2005 (formerly 802.1s)
• RSTP (802.1w) and Enhanced Rapid Spanning Tree (eRSTP™) network fault recovery (<5ms)
• Quality of service (802.1p) for real-time traffic
• VLAN (802.1Q) with double tagging and GVRP support
• Link aggregation (802.3ad)
• Traffic prioritization
• Transaction-based configuration with rollback
• GMRP and GMVP services
• Ethernet ports configurable for routed or switched operation
• Telecom style CLI
Management Tools
• Web-based, telecom standard CLI management interfaces
• SNMP v1/v2/v3
• Remote monitoring (RMON)
• Rich set of diagnostics with logging and alarms
• NETCONF
• Role-based access control
Universal Power Supply Options
• Fully integrated, dual-redundant (optional) power supplies
• Universal high voltage ranges: 88–300VDC or 85–264VAC
• Terminal blocks for reliable, maintenance-free connections
• CSA/UL 60950 safety approved to 85°C
