MMD Mineral Sizing (Canada) Inc.

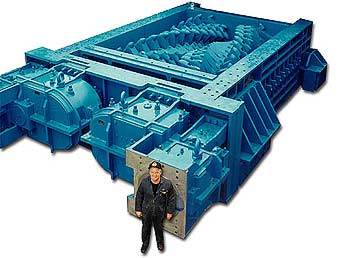

1500 Series Sizer

Features:

• Modular Ribbed Robust Mainframe
• Sizing Chamber lined with easy to replace wearplates
• Suitable holes predrilled to readily accept hopper or chute work
• High strength alloy steel shafts
• Replaceable wear part design, sizer teeth can be replaced quickly.
• Unique tooth designs to allow maximum utilization of the materials.
• Grease lubricated bearings usually fed by automated system
• Steps taken to prevent ingress of dirt to bearings
• Fluid Coupling - Allows loaded startup and affords torque protection to the machine
• Shock loading resistant - Robust modular gearbox with high torque capacity
• Stall / Non-Start Detection



1500 Series Sizer

Technical Specification:

All specifications include gearbox and motor.


Shaft Centres 1500mm
Overall Dimensions H1800mm, W4050mm, L10100mm
Inlet Dimensions L4200mm, W3200mm
Weight 190 Tonnes



The values in this table represent a typical sizer and are dependent on the tonnage rate and tooth configuration required.
