Process Flow Systems

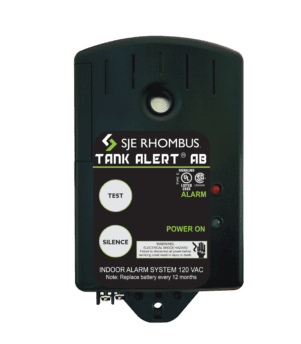

Tank Alert® AB
|
Indoor Tank Alarm with Auto Reset and Battery Backup
Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.
The Tank Alert® AB (auto reset, battery backup) indoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other water applications.
If an alarm condition occurs, the horn sounds and alarm light activates. The horn can be turned off, but the alarm light remains on until the condition is remedied. Once the condition is cleared the alarm will automatically reset.
Features
NEMA 1 enclosure for indoor use
Automatic alarm reset
Red alarm light, green power on light, alarm test switch and horn silence switch
Alarm horn sounds at 87 decibels at 10 feet (3 meters)
If primary power fails, the alarm system continues to operate on the battery backup
Low battery chirp indicates when battery needs to be replaced (battery not included)
External terminal block for easy installation of float switch
Can be used with an UL Listed/Recognized switching mechanism rated to include 1 amp, 9 VDC load
Switch mechanism operated on low voltage and is isolated from the power line to reduce the possibility of shock
Options:
Alternate float switch models for high or low level warning
Auxiliary dry normally open and normally closed contacts
Splice kit
UL Listed, CSA Certified
Five-Year Limited Warranty
Specifications
VOLTAGE FOR 120V MODEL:
Primary: 120 VAC, 60 Hz, 2.4 watts max. (alarm condition)
Secondary: 9 VDC
BATTERY BACKUP POWER:
9 VDC
ALARM ENCLOSURE:
6 x 4 x 2.25 inches (15.24 x 10.16 x 5.71 cm), NEMA 1 plastic
ALARM HORN:
87 decibels at 10 feet (3 meters)
POWER CORD:
6 feet (1.8 meters)
FLOAT SWITCH CONNECTION TERMINAL:
For float switch connection only. Do not apply power. (Voltage across terminals is 8-9 VDC)
FLOAT SWITCH:
SJE SignalMaster® control switch with mounting clamp
Cable: 15 feet (4.57 meters), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
Float: 2.74 inches diameter x 4.83 inches long (7.0 cm x 12.3 cm), high impact, corrosion resistant polypropylene housing for use in sewage and water up to 140°F (60°C)
AUXILIARY ALARM CONTACTS (Optional):
(CSA Certified only unit)
Voltage: 120 VAC
Current: 5 amps maximum N/O; 3 amps maximum N/C
