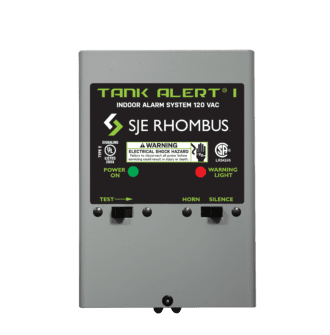

Tank Alert® I
|
Indoor Tank Alarm
Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.
The Tank Alert® I indoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications.
If an alarm condition occurs, the horn sounds and alarm light activates. The horn can be turned off, but the alarm light remains on until the condition is remedied.
Features
NEMA 1 enclosure for indoor use
Red alarm light, green power on light, alarm test switch and horn silence switch
Alarm horn sounds at 86 decibels at 10 feet (3 meters)
Can be used with any UL Listed/Recognized switching mechanism rated to include 1 amp, 12 VAC load
Alarm system (when installed on separate circuit) operates even if the pump circuit fails
Switch mechanism operated on low voltage and is isolated from the power line to reduce the possibility of shock
Options:
Alternate float switch models for high or low level warning
120 VAC primary voltage or 230 VAC primary voltage (230 VAC model is not UL Listed or CSA Certified)
UL Listed, CSA Certified
Five-Year Limited Warranty
Specifications
VOLTAGE FOR 120 VAC MODEL:
Primary: 120 VAC, 50/60 Hz, 5 watts max. (alarm condition)
Secondary: 12 VAC
VOLTAGE FOR 230 VAC MODEL:
Primary: 230 VAC, 50/60 Hz, 5 watts max. (alarm condition)
Secondary: 12 VAC
ALARM ENCLOSURE:
6 x 4 x 2.5 inches (15.24 x 10.16 x 6.35 cm), NEMA 1 metal
ALARM HORN:
86 decibels at 10 feet (3 meters)
POWER CORD:
6 feet (1.8 meters)
FLOAT SWITCH CONNECTION TERMINAL:
For float switch connection only. Do not apply power. (Voltage across terminals is 12 VAC. Maximum line impedance for initiating device: 5 ohms)
FLOAT SWITCH:
SJE SignalMaster® control switch with mounting clamp
Cable: 15 feet (4.57 meters), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
Float: 2.74 inches diameter x 4.83 inches long (7.0 cm x 12.3 cm), high impact, corrosion resistant polypropylene housing for use in sewage and water up to 140oF (60oC)
