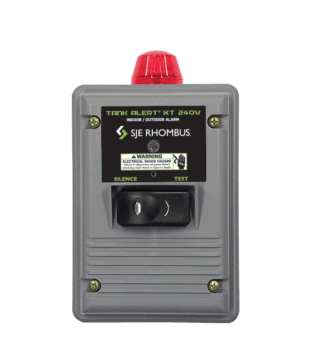

Tank Alert® XT
|
Indoor/Outdoor Tank Alarm with Auto Reset
Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.
The Tank Alert® XT indoor/outdoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications.
If an alarm condition occurs, the horn sounds and red alarm beacon activates. The horn can be turned off, but the alarm beacon remains on until the condition is remedied. Once the condition is cleared the alarm will automatically reset.
Features
Enclosure meets Type 3R water-tight standard
Automatic alarm reset
Horn silence switch and alarm test switch
Alarm horn sounds at 85 decibels at 10 feet (3 meters)
Alarm system (when installed on a separate circuit) operates even if pump circuit fails
Options:
Alternate float switch models for high or low level warning
Auxiliary dry normally open contacts for easy attachment of remote devices
Pre-mounted terminal block so enclosure can be used as a junction box for splicing pump, pump switch, and pump power. Meets NEC standard for junction boxes.
6 foot (1.8 meter) power cord and liquid-tight connectors
UL Listed, CSA Certified
Five-Year Limited Warranty
Specifications
VOLTAGE:
120 VAC, 50/60 Hz
ALARM ENCLOSURE:
6.5 x 4.5 x 3.0 inches (16.51 x 11.43 x 7.62 cm), indoor/outdoor weatherproof thermoplastic which meets Type 3R water-tight standard
ALARM HORN:
85 decibles at 10 feet (3 meters) meets Type 3R water-tight standard as installed by factory
ALARM BEACON:
UL Listed, Type 4X beacon assembly
TEST/SILENCE SWITCH:
Certified to IP66 and IP68 standards
AUXILIARY ALARM CONTACTS (Optional):
120 VAC. 5 amps max., 50/60 Hz
PRE-MOUNTED TERMINAL BLOCK (Optional):
20 amps, 120/230 VAC
POWER CORD (Optional):
6 foot (1.8 meter) cord with 120 VAC plug
FLOAT SWITCH:
SJE SignalMaster® control switch with mounting clamp
Cable: 15 feet (4.57 meters), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)
Float: 2.74 inches diameter x 4.83 inches long (7.0 cm x 12.3 cm), high impact, corrosion resistant polypropylene housing for use in sewage and water up to 140°F (60°C)
