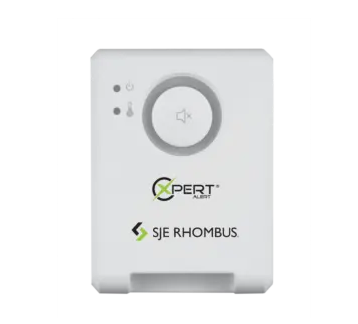

Xpert Alert® Indoor Alarm System

The Xpert Alert® Indoor Alarm System is an innovative multi-condition alarm that combines the latest liquid level technology with a sleek, modern design.



When it comes to sump and septic alarm systems, Trust the Expert! SJE Rhombus® has over 40 years of providing high quality residential alarm systems to users all over the world. With our exceptional customer service and an industry-leading 5-year limited warranty, SJE Rhombus is the leading choice for protecting your home and valuables!



The NEW Xpert Alert® indoor alarm system helps protect your home from potentially costly damage due to flooding, pump failure or freezing pipes. When the level rises in your tank, the high water float activates the alarm (audible and visual) to alert you of potentially threatening liquid level conditions.



Features



Sleek enclosure design features unique shape with smooth, rounded edges and large push button with LED light ring

Compact NEMA 1 enclosure, designed for ease of installation, rated for indoor use

Automatic alarm reset

(2) sensor inputs to monitor (2) separate liquid level conditions

LED alarm light ring alerts you of alarm status; red for alarm 1, amber for alarm 2

Audible alarm activates with alarm 1, alarm 2, low temperature and low battery chirp

Red LED low temperature indicator activates at 40°F (4°C) to alert you of potential freezing conditions

Low temperature alarm may be deactivated when temperature monitoring is not required

Green LED power on indicator

Alarm horn sounds at 80 decibels at 10 feet

Large, easy-to-use test/silence button located conveniently on front of alarm; simply press to test or silence alarm

If primary power fails, the alarm system continues to work due to battery backup feature

Complete package includes standard SJE MilliAmpMaster™ control switch with 10 feet of cable and mounting clamp

Switching mechanism operates on low voltage and is isolated from the power line to reduce the possibility of shock

Low battery chirp

Includes auxiliary contacts for attachment of remote devices (continues to operate during loss of primary power)

Covered terminal block for easy, secure float switch installation

CSA Certified

Five-Year Limited Warranty



Specifications



VOLTAGE:

Primary: 120 VAC, 60 Hz, 5 watts max. (alarm condition)

Secondary: 5 VDC



BATTERY BACKUP POWER:

4.5 VDC (3 AA batteries not included)

Operates for 24 hrs in alarm condition, one month when no alarm is present



ALARM ENCLOSURE:

5.5 x 4 x 1.75 inch (14 x 10 x 4.5 cm), NEMA 1 plastic.



ALARM HORN:

80 decibels at 10 feet (3 meters)



POWER CORD:

6 foot (1.8 meter) MicroUSB



FLOAT SWITCH CONNECTION TERMINALS:

For float switch connection only – do not apply power. (Voltage across terminals is 3 VDC).



FLOAT SWITCH: SJE MilliAmpMaster™ control switch with mounting clamp

Cable: 10 feet (3 meters), flexible 18 gauge, 2 conductor (UL) SJOW, water-resistant (CPE)

Float: 2.74 inch diameter x 4.83 inch long (7.0 cm x 12.3 cm), high impact, corrosion resistant polypropylene housing for use in sewage and water up to 140°F (60°C)



AUXILIARY ALARM CONTACTS:

Normally open, normally closed (CSA certified)

Voltage: ≤ 30 VAC/VDC (Class 2)

Current: 1 amp maximum
