Model 112
|

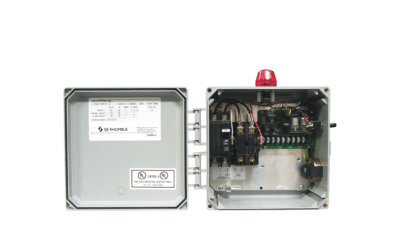

The Model 112 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.
The Model 112 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.
The Model 112 control panel provides a reliable means of controlling one 120/208/240V single phase pump in water and wastewater applications.
Two control switches activate a magnetic motor contactor to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system.
Common applications include pump chambers, sump pump basins, irrigation systems and lift stations.
Features
Panel Features:
Choice of NEMA 1 (indoor) or NEMA 4X (indoor/outdoor) enclosure
Red alarm beacon provides 360° visual check of alarm condition (NEMA 1 style uses a door mounted indicator in lieu of a beacon)
Alarm horn provides audio warning of alarm condition (NEMA 1 style uses an internally mounted buzzer in lieu of a horn)
External alarm test/normal/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition has been cleared
Horn silence relay
Magnetic motor contactor controls pump by switching electrical lines
Hand/Off/Automatic (HOA) switch for manual pump control
Green pump run indicator light
Float switch terminal block
Alarm and control fuses/indicators
Ground lug
Circuit breaker (optional) provides pump disconnect and branch circuit protection
Options:
For a complete listing of available options, please view the backside of the catalog page.
UL/cUL Listed
Five-Year Limited Warranty
Specifications
ENCLOSURE:
8 x 8 x 4 inches (20.32 x 20.32 x 10.16 cm)
Choice of NEMA 1 (steel for indoor use) or NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
ALARM HORN:
83 – 85 decibel rating
