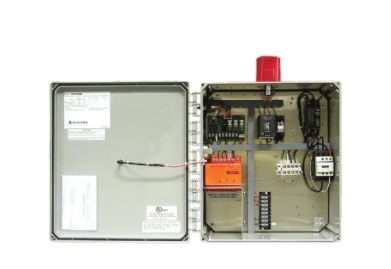

Model 114
|
Single Phase Simplex Pump Control with Intrinsically Safe Circuits
The Model 114 Build-A-Panel™ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs.
The Model 114 control panel is designed to control one 120/208/240V single phase pump in applications requiring intrinsically safe float circuits or other circuit extensions.
Two control switches activate a magnetic motor contactor to turn the pump on and off. If an alarm condition occurs, an alarm switch activates the audio/visual alarm system.
Common applications include pump chambers, lift stations or other installations classified as hazardous locations requiring intrinsically safe circuits.
Features
Panel Features:
NEMA 4X (indoor/outdoor) enclosure
Red alarm beacon provides 360° visual check of alarm condition
Alarm horn provides audio warning of alarm condition
Exterior alarm test/normal/silence switch allow horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
Horn silence relay
Intrinsically safe module limits the amount of energy to switches preventing ignition of flammable gases
Intrinsically safe partition isolates the intrinsically safe wiring
IEC motor contactor controls pump by switching electrical lines
Hand/Off/Auto (HOA) switch for manual pump control
Green pump run indicator light
Alarm and control fuses/indicators
Input power terminal block
Ground lugs
Circuit breaker (optional) provides pump disconnect and branch circuit protection
Overload relay (optional) provides thermal overload protection for pump
Options:
For a complete listing of available options, please view the backside of the catalog page.
UL/cUL Listed
Industrial control panel is UL Listed relating to hazardous locations with intrinsically safe circuit extensions
Five-Year Limited Warranty
*Model 114 control panels cannot be returned.
Specifications
ENCLOSURE:
16 x 14 x 6 inches (40.64 x 35.56 x 15.24 cm)
NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)
ALARM HORN:
83 – 85 decibel rating
