Model 123

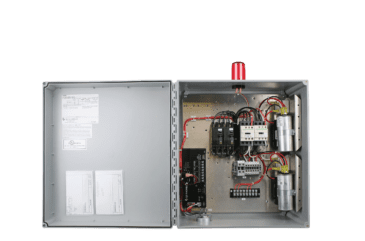

The Model 123 control panel is designed to control two 120, 208, or 240 VAC single phase pumps requiring external starting components in water and sewage installations. The controller is provided with a pump selector switch that can be set to alternate the pumps to equalize wear or to call either pump to activate first with the other pump to activate in lag condition. If an alarm occurs, the alarm actives the audible-visual system. The alarm conditions include: high water, float out-of-sequence, pump fail-to-run, seal failure (optional). Common applications include pump chambers and lift stations.



Features



Panel Features:



NEMA 4X (indoor/outdoor) enclosure

Red alarm beacon provides 360° visual check of alarm condition

Alarm horn provides audio warning of alarm condition

Exterior alarm test/normal/silence switch allow horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared

Horn silence relay

IEC motor contactors control pumps by switching electrical lines

Hand/Off/Auto (HOA) switches for manual pump control

Green pump run indicator lights

Alternating circuit board (U.S. patent # 5,909,352) provides pump control and alternation

Control on/off switch

Float status indicator lights

Control/alarm power indicator light

Incoming pump power terminal block/pump terminal block

Circuit breakers (optional) provide pump disconnect and branch circuit protection

Ground lugs

Capacitor start modules*



Options:



For a complete listing of available options, please view the backside of the catalog page.



UL/cUL Listed



Five-Year Limited Warranty

*Start/Run Capacitor Kits must be ordered separately. Model 123 control panels cannot be returned.



Specifications



ENCLOSURE:

16 x 14 x 6 inches (40.64 x 35.56 x 15.24 cm)

NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for indoor/outdoor use)



ALARM HORN:

83 – 85 decibel rating
