NEX Series® Duplex Panel

The NEX Series® duplex control panel is designed to alternately control two 120, 208, or 240 VAC single phase pumps in water and sewage installations. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audible/visual alarm system. The compact design (10 x 8 x 4”) is ideal for residential applications. Universal pump voltage and control/alarm power allow the NEX Series® panel to handle three voltages (120/208/240V). The innovative internal design of components and integral mounting tabs make installation quick and simple.



Features

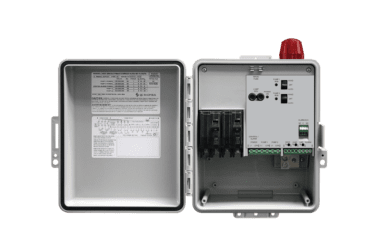

Panel Components:



Enclosure measures 10x8x4 in NEMA 4X

Padlockable latch

Integral mounting feet for indoor or outdoor use

Power Relays (not shown) control pump by switching electrical lines

HOA switches for manual pump control

Green pump run indicator lights

Field wiring terminal blocks

Control/alarm fuses

Control/alarm power indicator

Ground lug

Circuit breakers

Float status indicator lights

Elapsed time meters (optional)

Standard alarm package:

Red alarm beacon

Alarm horn

Exterior alarm test/silence push button switch

Auxiliary alarm contacts



Features:



Compact 10 x 8 x 4″ enclosure design is an ideal solution for residential applications

Entire control system (panel and switches) is UL Listed to meet and/or exceed industry safety standards

Dual safety certification for the United States and Canada

Standard package includes 20′ SJE SignalMaster® control switches

Complete with step-by-step installation instructions



UL/cUL Listed

Five-Year Limited Warranty

Patent Pending



Specifications



VOLTAGE SUPPLY:

PUMP: 120/208/240 VAC, 50/60 Hz

CONTROL/ALARM: 120/208/240 VAC, 50/60 Hz



ENCLOSURE:

10 x 8 x 4 inch (25 x 20 x 10 cm)

Padlockable NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting feet for outdoor or indoor use)



FLOAT CONTROL VOLTAGE:

12 VDC



PUMP AMPS:

0-12 Amps; 9-20 Amps



AUXILIARY ALARM CONTACTS:

Form C, 5 Amp, 120 VAC Max



ALARM HORN:

85 – 90 decible rating
