NEX Series® Simplex Panel

The NEX Series® simplex panel is designed to control one single phase pump in water and wastewater applications. Two control switches activate a power relay to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audible/visual alarm system. The compact design (8 x 6 x 4″) is ideal for residential applications. Universal pump voltage and control/alarm power allows the NEX Series® simplex panel to handle three voltages (120/208/240V). The innovative internal design of components and integral mounting tabs make installation quick and simple.



Features

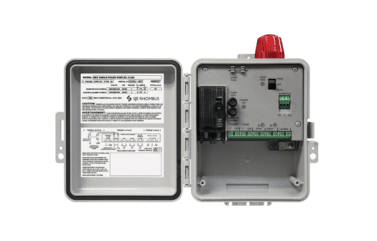

Panel Components:



Enclosure measures 8x6x4 in NEMA 4X

Padlockable latch

Integral mounting feet for indoor or outdoor use

Power Relays (not shown) control pump by switching electrical lines

HOA switches for manual pump control

Green pump run indicator lights

Field wiring terminal blocks

Control/alarm fuses

Control/alarm power indicator

Ground lug

Circuit breakers

Float status indicator lights

Elapsed time meters (optional)

Standard alarm package:

Red alarm beacon

Alarm horn

Exterior alarm test/silence push button switch

Auxiliary alarm contacts



Features:



Compact 8 x 6 x 4″ enclosure design is an ideal solution for residential applications

Universal pump voltage and control/alarm power; one panel handles three voltages (120/208/240V)

Integral mounting tabs for easy installation

Integral padlockable latch for added safety

Innovative design of internal components allows for quick, simple installation



UL/cUL Listed

Five-Year Limited Warranty

Patent Pending



Specifications



ENCLOSURE:

8 x 6 x 4 inches (20.32 x 15.24 x 10.16 cm)

Padlockable NEMA 4X (ultraviolet stabilized thermoplastic with integral mounting feet for outdoor or indoor use)



ALARM HORN:

85 – 90 decibel rating
