BDI Canada Inc.

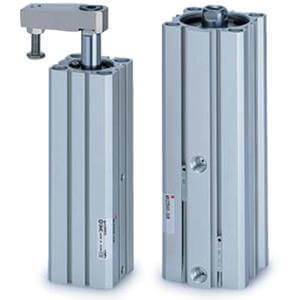

MK2T, Swing Clamp Cylinder, Double Guide Type

Combining compact cylinder size and rotational capability, the MK2T cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended.

MK2T, Swing Clamp Cylinder, Double Guide Type
Combining compact cylinder size and rotational capability, the MK2T cylinder is designed for heavy duty clamping applications, with an available integrated arm that swings out of the way when the cylinder is extended. 90 degrees clockwise or counter clockwise rotation is available, and clamping arms with adjustment screw are standard options. MK2T is available in 6 bore sizes from 20mm to 63mm and stokes from 10 mm to 50 mm

Heavy duty rotary clamp cylinder

Bore sizes: 20mm-63mm
Mounting: through hole, head end flange
Available strokes: 10mm, 20mm, 50mm
Auto switch capable
