Extremely Low Headroom Chain Hoist
|

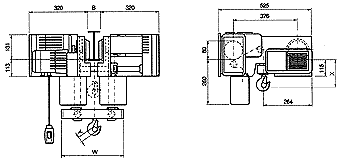

A hoist used in rooms with particularly low ceilings must make the most of every millimeter of hook path. The “extremely short headroom trolley TK”, with its exceptionally low headroom of 136/151 mm for lifting capacities up to 500/1000 kg, is a hoist of this type.
Trolley TK
A hoist used in rooms with particularly low ceilings must make the most of every millimeter of hook path. The “extremely short headroom trolley TK”, with its exceptionally low headroom of 136/151 mm for lifting capacities up to 500/1000 kg, is a hoist of this type.
The “heart” of this special hoist is the well-proven R. Stahl chains hoist T2 (technical description see page 4). Depending on lifting capacity and hoisting speed, either one or two T2 chain hoists are installed in an “extremely short headroom trolley TK”.
The “extremely short headroom trolley TK” offers decisive advantages in use:
• The chain drive is unique. Two separate, synchronously running chains act on one bottom hook block and lift the load without swinging and practically without oscillations (patent applied for). The bottom hook block has a rotating load hook for easy and effortless handling. The overall dimensions are very favourable, the dead weight is low.
