Robertson Building Systems

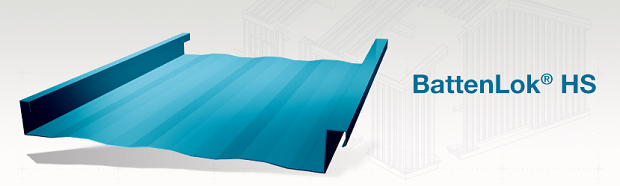

BattenLok HS
|
An attractive feature of the BattenLok® HS panel is the vertical leg sidelap seam that is mechanically seamed with an electric seamer for a weathertight finish. This panel features concealed clips and easy to handle 16″ or 12″ wide panels custom cut to the desired length. BattenLok® HS can be installed directly over purlins or bar joists. It does not require a solid substructure for support. This roof system has several different UL® 90 construction numbers.
An attractive feature of the BattenLok® HS panel is the vertical leg sidelap seam that is mechanically seamed with an electric seamer for a weathertight finish. This panel features concealed clips and easy to handle 16″ or 12″ wide panels custom cut to the desired length. BattenLok® HS can be installed directly over purlins or bar joists. It does not require a solid substructure for support. This roof system has several different UL® 90 construction numbers.
Gauge
24 gauge (standard)
22 gauge
Length
Maximum 40′ (standard), other lengths are available
as special requests
Dimensions
16″ wide and 2″ high (standard)
12″ also available
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Limitations
Recommended for roof slopes of ½:12 or greater. Oil canning
is not a reason for rejection.
Fasteners
A choice of concealed panel clips is available for this panel system including UL® rated clips. These clips hold the panel firmly in place without unsightly exposed fasteners. Each floating clip system offers the ability to accommodate thermal movement.
Usage
This panel is a structural panel that spans up to five feet on purlins, or can be used as an architectural panel over solid deck. This flat panel is designed with striations as an option to minimize oil-canning. It is designed to meet the ever-changing specifications and other industry codes.
Advantages
Insures watertightness and easier erection
Improves erection and enhances watertightness
Minimizes oil canning
Flexible and convenient erection
Creates a trimless eave
Increases weathertightness and improves appearance
Minimizes air infiltration and water penetration and enhances acceptability among specifiers
Better transition to hip, valleys, and roof openings
High energy efficiency system
Allows roof to expand and contract maximizing weathertightness
Provides of varying insulation thickness
25 year finish warranty
Reduces insurance costs
Helps with oil canning
