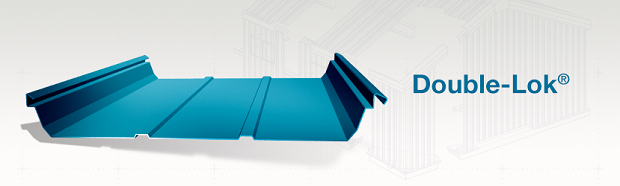

Double-Lok
|
Double-Lok® is a standing seam roof system that attaches to sub-framing using a variety of concealed, interlocking clips that provide for minimum panel penetrations. Double-Lok® panels can be used on new construction as well as retrofit on existing structures. This panel design provides a high degree of weathertightness and has been tested by independent laboratories in accordance with ASTM E283 and E331 (for air infiltration, water penetration, and wind uplift).
Double-Lok® is a standing seam roof system that attaches to sub-framing using a variety of concealed, interlocking clips that provide for minimum panel penetrations. Double-Lok® panels can be used on new construction as well as retrofit on existing structures. This panel design provides a high degree of weathertightness and has been tested by independent laboratories in accordance with ASTM E283 and E331 (for air infiltration, water penetration, and wind uplift).
Gauge
24 gauge (standard)
22 gauge
Length
50′ maximum is standard but longer lengths available by special request
Dimensions
24″ wide by 3″ high (standard)
18″ and 12″ also available
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Limitations
Recommended for roof slopes of ¼:12 or greater. Typically installed with a floating roof clip, but fixed clips can be used on gabled buildings up to 200′ wide and single slope buildings 100′ wide or less.
Fasteners
Concealed fastening system. The clips are available as floating or fixed. Three floating clip heights are available to allow for thermal blocks.
Usage
New and retrofit applications
Advantages
Panel penetration is eliminated over the entire building envelope other than at the end laps and panel ends which are connected by a compression joint
Factory notched at both ends with pre-punched holes
End laps feature a 16 gauge backup plate with pre-punched holes
Fewer exposed fasteners (by 80%) than traditional side lap panels
Air infiltration and water penetration tests under IAS E283 and E331 methods performed on side lap panels
Signature® 300 paint system
Tall or short clips
Panel side laps feature a factory applied sealant
UL® 90 and FM rated
Optional product and weather tightness warranties
