Robertson Building Systems
SuperLok
|

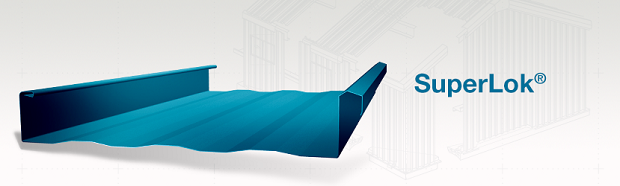

The SuperLok® standing seam roof system blends the aesthetics of an architectural panel with the strength of a structural panel. This panel has earned uplift ratings that are the highest in the industry for standing seam roofs, assuring reliable performance. This panel is FM Global approved to satisfy stringent code requirements and is ICBO approved.
The SuperLok® standing seam roof system blends the aesthetics of an architectural panel with the strength of a structural panel. This panel has earned uplift ratings that are the highest in the industry for standing seam roofs, assuring reliable performance. This panel is FM Global approved to satisfy stringent code requirements and is ICBO approved.
Gauge
24 gauge (standard)
22 gauge
Length
The maximum recommended length is 50′
Dimensions
16″ wide and 2″ high (standard)
12″ also available
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Limitations
SuperLok® must be installed on roof slopes of ½:12 or greater.
Fasteners
Concealed fastening system. A choice of concealed panel clips are available for this panel system including UL rated clips. These clips hold the panels firmly in place without unsightly exposed fasteners. Each floating clip system offers the ability to accommodate thermal movement.
Usage
SuperLok® is a field seamed panel that combines a slim rib with exceptional uplift resistance. This panel has been designed to withstand the most rigorous conditions. This system was designed to be installed over open framing, roof framing or solid substrate.
NOTE: Oil-canning is not considered grounds for rejection of any panel system.Oil-canning can occur in any panel with wide flat sections. Heavier gauge, embossing, striations, flatter sub-frame systems and support from a solid sub-deck can all help to minimize oil-canning.
Advantages
Maximizes flexibility
May be installed in both directions or simultaneously
Provides for expansion and contraction
Reduces labor, enhances system life
Customer assurance of quality and long life
May qualify for reduced insurance rates
Longer life
Meets stringent code requirements such as Factory Mutual
This panel is Factory Mutual approved to satisfy stringent code requirements and is ICBO approved
These clips hold the panels firmly in place without unsightly exposed fasteners; Each clip system offers the ability to accommodate thermal movement
This panel meets or exceeds the design requirements for appliction in South Florida
