Robertson Building Systems

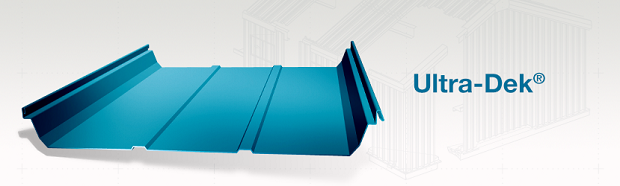

Ultra-Dek
|
Ultra-Dek® is a metal standing seam roofing product attached by using a variety of concealed, interlocking clips that provide for minimum panel penetrations. This panel offers a snap together sidelap seam and saves the rental cost of mechanical electric seamer. This panel is recommended for use in non-snow regions. This panel can be used on new construction as well as retrofit on existing structures. This panel is designed to provide a high degree of weathertightness and has been tested by independent laboratories in accordance with ASTM E283 and E331 (for air infiltration and water penetration).
Ultra-Dek® is a metal standing seam roofing product attached by using a variety of concealed, interlocking clips that provide for minimum panel penetrations. This panel offers a snap together sidelap seam and saves the rental cost of mechanical electric seamer. This panel is recommended for use in non-snow regions. This panel can be used on new construction as well as retrofit on existing structures. This panel is designed to provide a high degree of weathertightness and has been tested by independent laboratories in accordance with ASTM E283 and E331 (for air infiltration and water penetration).
Gauge
24 gauge (standard)
22 gauge (available on special request)
Length
50′ maximum, longer lengths available by special request
Dimensions
24″ wide by 3″ high (standard)
18″ and 12″ also available
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Limitations
Recommended for roof slopes of 1/4:12 or greater. Typically installed with a floating roof clip, but fixed clips can be used on gabled buildings up to 200′ wide and single slope buildings up to 100′ wide.
Fasteners
Concealed fastening system. The clips are available as floating or fixed. Two floating clip heights are available to allow for various thermal block and insulation thickness.
Usage
This panel is a structural panel that spans up to five feet purlins. It is designed to meet the ever-changing specifications and other industry codes.
Advantages
Design Integrity
Floating roof is able to cope with the forces of expansion and contraction
2” sliding clips available
UL Class 90 Rating
Fire resistance ratings
No field seaming is required
Flexibility
Ease of Installation
Forgiving system
Pre-punched panels and components
Colors and finishes
