High-Speed Steam Turbines

Outstanding Performance in a Range of Refinery Services

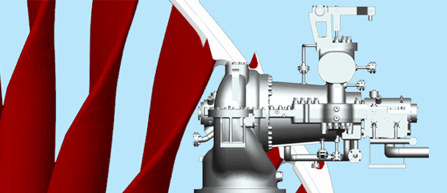

Elliott's high-speed, high-efficiency multi-valve steam turbine combines the reliability of an impulse style turbine with the efficiency of a reaction style turbine to provide outstanding performance in a range of refinery services. Designed to API 612 standards, the turbine has a small footprint but packs a powerful punch, offering a technical leap forward in speed and efficiency. At typical pressure and temperature operating conditions* the turbine's efficiency is greater than 80 percent. *(Typical operation conditions: 600 psig / 750° F. High pressure / high temperature operation conditions: 1300 psig / 905° F).



The 13-stage, multi-valve turbine serves as a direct drive for compressors in oil and gas-related services including hydrocracking, hydrotreating, catalytic reforming, alkylation, refrigeration, gas boosting and coking. It's high-speed condensing design eliminates the need for a separate gear box, greatly reducing the amount of mineral oil, cooling water, and steam required for high-efficiency operation. The turbine's high-speed capabilities allow for smaller compressor frame sizes with fewer stages for a smaller overall footprint.
