Multi-Fluid Lube Skid
|

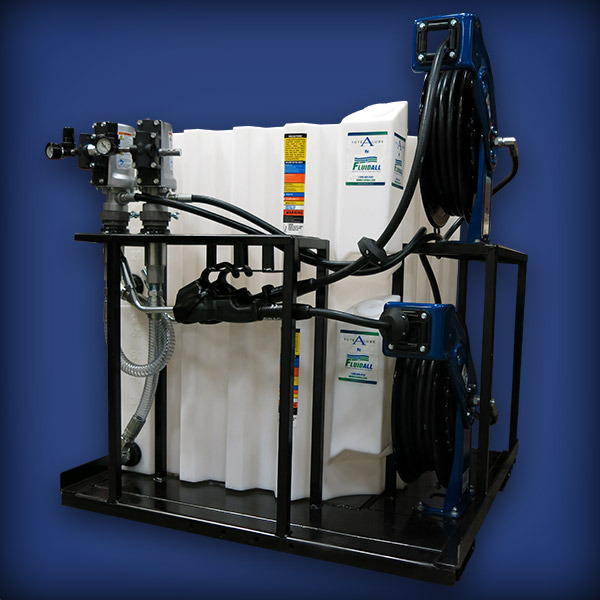

Multi-Fluid Lube Skid conveniently transport oil, lubricants and industrial fluids to remote service areas easily, as the 40" x 40" steel skid easily fits into truck beds. Stack up to three Tote-A-Lube tanks on one single lube skid configuration; the skid is compatible with the 35, 70 and 120 gallon fluid storage tanks. This portable multi-fluid and lube skid is outfitted with a steel forkliftable base. Casters, pump packages and on-board filtration are optional.
Tank Compatibility
35, 70 and 120 Gallon Tote-A-Lube Tanks. Maximum stacked tank height (including Fill Port height) is 45".
35, 70 and 120 Gallon Tote-A-Lube Tanks. Maximum stacked tank height (including Fill Port height) is 45".
Dimensions
40" x 40" x 28"H (Add 10" Height for Caster Wheels)
Tank Openings
(1) Angled Fill Port with 2″ NPT Poly Cap
(1) Angled Fill Port with 2″ NPT Poly Cap
(1) 2″ NPT Brass Plug
(1) 1″ Bulkhead
Skid Weight
187 lbs.
UV SymbolUV
Resiliance Fluidall’s tanks are manufactured with the latest generation of high performing UV stabilized resins for longer exposure life to direct sunlight and ultraviolet light.
