REFLEX IQ-LOGGER™
The REFLEX IQ-LOGGER™ solution improves structural logging speed and accuracy, whilst the digital transfer of structural measurements provides a reliable digital audit trail. The inbuilt data verification capability using stereonet projections ensures orientations are accurate and reliable and decisions are able to be made as data is collected.
The REFLEX IQ-LOGGER™ solution improves structural logging speed and accuracy, whilst the digital transfer of structural measurements provides a reliable digital audit trail. The inbuilt data verification capability using stereonet projections ensures orientations are accurate and reliable and decisions are able to be made as data is collected.
Accuracy & Ease of Use

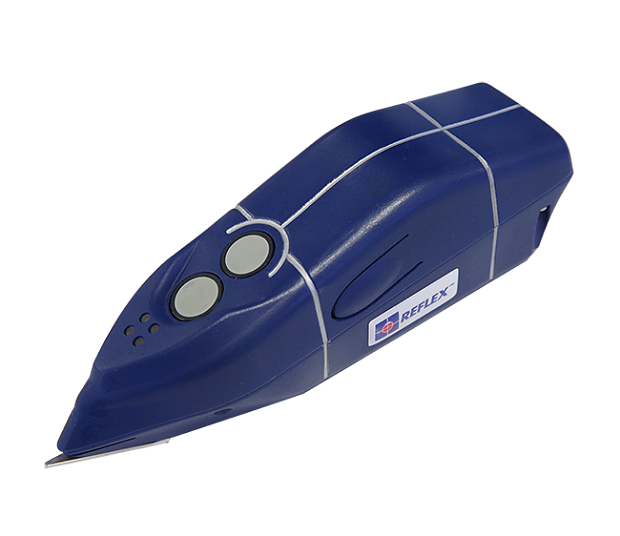

The REFLEX IQ-LOGGER™ handheld structural logging device can simply be rolled along the orientation line on diamond core automatically recording depth with structural measurements able to be taken at the press of a button.
Laser alignment with structures is far easier and more intuitive than current goniometers on the market, and there is no need to remove the core from the core tray to log. QA/QC and data editing is done at the point of data collection to ensure accuracy. Data then flows digitally, without the risk of alteration or error, from field to office in real time.
Immediate Information
The REFLEX IQ-LOGGER™ software allows real-time viewing of structural measurements from oriented drillcore on a stereonet and attribution of metadata against the structure for better decision making.
The IQ-LOGGER™ solution includes a seamless workflow into ioGAS™ for structural interpretation incorporating assay and other geoscience data.
Application
Geologists in mining and exploration environments use the data from the REFLEX IQ-LOGGER™ for a better understanding of the orientation of ore controlling structures and the broader structural geology of the project.
Geotechnical engineers use the data from the REFLEX IQ-LOGGER™ for safe and cost effective mine and civil construction design.
