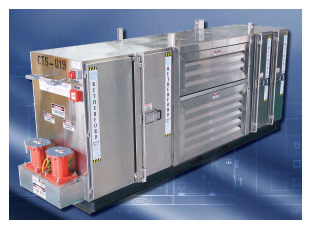

CONTAINER SUBSTATIONS (CSS)
|
The CSS series device has been designed to handle medium voltages for construction projects. These electrical substations are commonly used in mining and tunneling applications, CSS can distribute electricity over long distances.
The CSS series device has been designed to handle medium voltages for construction projects. These electrical substations are commonly used in mining and tunneling applications, CSS can distribute electricity over long distances.
The CSS size allows the installation of a higher power transformer, up to 5 MVA. The 20 'and 40' containers conform to standard ISO dimensions for easy transport by ship or truck.
Using standard voltages of 6.6 kV, 11 kV and 22 kV, the design allows the user to provide power to the entire construction site and high voltage through power supplies. PBE's CSS series container substation is suitable for a variety of environments. Each power substation is designed according to the required specification.
Specification
Rated voltage 6.6 kV-22 kV / 1100-415 V
Rated power 315 kVA - 5000 kVA
Weight 6 - 18 tons
Length 4000mm - 9000mm, height 1650mm-1800mm, width 1000mm - 1100mm
Manufacturing
3-10mm ISO Soft Steel Container
all-welded electrical enclosures
Anti-corrosion protection
Fire safety doors
Internal anti-slip floors
Transport certification
Suitability of rated lifting points
LV electrical construction
MCCV 690 V - 1100 V are used for power distribution and protection with access to switching through low voltage front blind doors.
Indications include as standard:
Ammeter
Alarm and trip indication
TX monitoring
Ratings and options include;
415 V - MCCB at 690 V
1000 V - MCCB are rated for 1000 V
Power Factor Correction Module
External indication
Copper bar complies with Australian standards, conductive grease is used in connections
Lighting and small sockets are standard
Transformer
The robust design of the substation allows it to be installed in harsh environments, and access to the incoming and outgoing power supplies, as well as to the mains feeder, is plug and play.
MV electrical construction
The CSS conforms to international standards and can be configured as "Single Incoming" or "Incoming through" and a transformer source allowing distribution from the HT and LT ends. Custom assemblies are available according to customer requirements.
Specifications of container substations
Easy transportation, dimensions in accordance with ISO standards for containers, no need for transportation on flat racks or special vehicles for transporting oversized cargo
Suitable attachment points for lifting in field handling, optimal design within mechanical limits, ISO locking angles, attachment points for lifting and towbar
Access to the transformer compartment is provided through mechanically locked doors with covers equipped with safety switches
Input and output power supplies with the ability to connect from the bottom or from the side to the socket in the form of tonsil or adapter
Natural ventilation is achieved with suitable slats covered with insect screens
Forced ventilation options available
