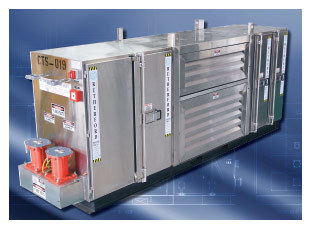

COMPACT TUNNEL SUBSTATIONS (CTS)

The CTS series of electrical substations has been designed for medium voltage operation in construction projects.

Widely used in the mining and tunneling industry, the CTS series of power substations provides power distribution over long distances. The robust design makes it easy to move this device into the tunnel.



Using a standard range of voltages of 6.6 kV, 11 kV and 22 kV, the design allows the user to connect remote equipment over long distances, while providing independent power from the tunnel portal.



Specification



Rated voltage 6.6 kV - 22kV

Rated power 315 kVA - 2000 kVA

Weight: 2T - 10T

Length 4000mm - 9000mm, height 1650mm-1800mm, width 1000mm - 1100mm

<strong> Manufacturing </strong>

8mm mild steel plate construction with skid welded

2-5mm soft steel body

Continuously welded electrical enclosure

Powder coated

Anti-corrosive shell

Stainless steel option available

Suitable lifting points



Manufacturing



The CTS substation is constructed using an 8mm mild steel welded frame and a 2-5mm solid welded electrical enclosure. The parts of the structure are made of mild steel, powder coated after anti-corrosion treatment.



Transformer



Our standard power transformer is a dry-type polymer cast transformer, which is the most common in the world. If the customer prefers other types of transformers, we can configure them according to customer requirements.



LV electrical construction



MCCB 1100 V - 690 V are used for power distribution and protection with access to switching through low voltage LV blind front doors. Indications include as standard;



Ammeter

Alarm and trip indication

TX monitoring

Ratings and options include;

415 V - MCCB at 690 V

1000 V - MCCV with a rated power of 1000 V - 1100 V

Power Factor Correction Module

External indication



MV electrical construction



Our medium voltage section is built using various configurations. The most popular options are for input, feed-through and transformer power. This improves convenience when used in tunnels. The 24 kV class option is available in the same configuration as the -11 series, and the CTS can be equipped with an integrated cable reel as shown. The blast deflector configuration is ideal for blasting drilling and tunneling applications.



Available options:



Preferred Branded Outlets

Remote fault indication

Digital metering

Power factor correction

Back-up leakage ground

Pilot / Earth Continuity Protection

Up to ten (10) outgoing outlets

Tunnel lighting supply

Outdoor and indoor LED lighting

Explosion-shield design

Robust tubular skid
