FARO Freestyle3D
|
• Range: 0.5 – 3m
• Resolution @ 0.5m: Lateral: 0.2mm - 1mm / Depth: 0.2mm
• 3D point accuracy/ whole scan accuracy: <1.5mm
• Single image point density: Up to 45,000 points/m² in 0.5m distance and up to 10,500 points/m² in 1m distance
• Scan volume: 8.1m³
• Eye safety: Class 1 laser
• Weight: 0.98kg
• Size: 260mm x 310mm x 105mm
• Scanner control: Microsoft® Surface Pro 2 or 3 (no additional power supply needed)
For detailed specifications list, please view the product datasheet.

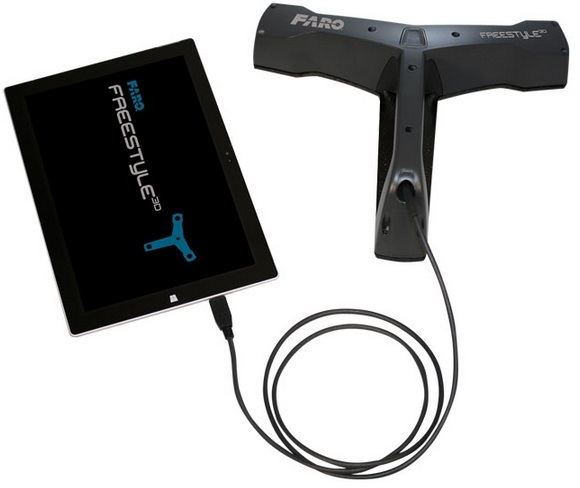

The FARO Freestyle3D is a top-quality high-precision handheld 3D laser scanner. It quickly and reliably documents rooms, structures and objects in 3D and creates high-definition pointclouds. With unbeatable precision it is suitable for all applications in which installations or properties must be quickly measured from various perspectives. The applications of the FARO Freestyle3D are diverse, and range from construction to industrial production and forensics. Thanks to its lightweight carbon fibre body, the handheld scanner weighs less than a kilogram, and is extremely portable and mobile. The tablet PC provides intuitive user guidance, even for inexperienced operators.
Features
• Handheld Color Laser Scanner: Effortlessly capture almost any surface type in a wide range of environments by simply pointing the FARO Freestyle3D to the surface of the object
• Intuitive Plug and Play System: The Freestyle3D provides high-productivity in the field with no warm-up time
• Real-Time Point Cloud Visualization: Point cloud viewing during scanning provides assurance of accurate data acquisition
• Lightweight Industrial-Grade Device: Durable carbon fiber design equips the user with a versatile and ergonomic tool for performing accurate scanning in confined spaces
• 3D Documentation Solution: The user can seamlessly combine results from the Focus3D and the Freestyle3D
