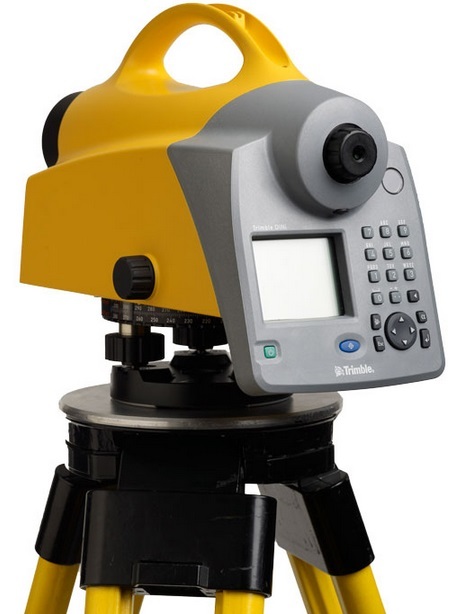

Trimble DiNi Digital Level

The Trimble DiNi Digital Level lets you:

• Determine accurate height information 60% faster than with automatic leveling

• Eliminate errors and reduce rework with digital readings

• Transfer data to the office easily

• Measure to a field of just 30 cm

• The easy-to-use and accurate Trimble DiNi offers numerous features to maximize your productivity in the field.

Trimble DiNi Digital Level

The Trimble® DiNi® Digital Level is a digital height measurement sensor designed for any job site where fast and accurate height determination is required. Use the Trimble DiNi for applications such as precise leveling of flat and sloping surfaces, establishing the vertical component of grade and ground profiles, subsidence monitoring, and establishing the vertical component of control networks. Two versions are available DiNI Digital Level 0.7mm and 0.3mm. See specifications for further information.

Accuracy: DIN 18723, standard deviation height measuring per 1 km (3280.84 ft) of double leveling

Trimble DiNi 0.3 mm per km

Electronic measurement

Invar precision bar code staff: 0.3 mm (0.001 ft)

Standard bar code staff. . . . . . 1.0 mm (0.004 ft)

Visual measurement: 1.5 mm (0.005 ft)

Distance measurement: 20 m (65.62 ft) sighting distance

• Invar precision bar code staff: 20 mm (0.066 ft)

• Standard bar code staff: 25 mm (0.082 ft)

• Visual measurements: 0.2 m (0.656 ft)

Trimble DiNi 0.7 mm per km

Electronic measurement

• Invar precision bar code staff: 0.7 mm (0.002 ft)

• Standard bar code staff: 1.3 mm (0.004 ft)

• Visual measurement: 2.0 mm (0.007 ft)

Distance measurement: with a 20 m (65.62 ft) sighting distance

• Invar precision bar code staff: 25 mm (0.082 ft)

• Standard bar code staff: 30 mm (0.098 ft)

• Visual measurement: 0.3 m (0.984 ft)

Range

• Electronic measurement: 1.5 m–100 m (4.92 ft–328.08 ft)

• Visual measurement: . from 1.3 m (4.265 ft)
