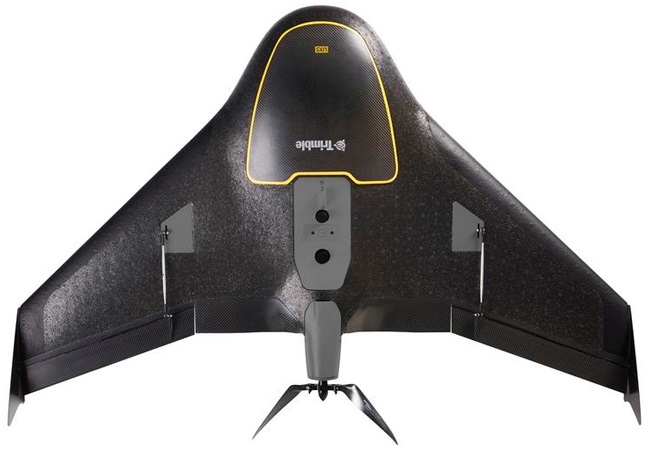

Trimble UX5
|
Specifications
• Weight: 2,5 kg (5.5 lb)
• Weight: 2,5 kg (5.5 lb)
• Wingspan: 100cm (39.4 in)
• Wing area: 34 dm2
• Dimensions: 100x 65x 10cm (39.4 x 26 x 4.1 in)
• Material: EPP foam; carbon frame structure; composite elements
• Propulsion: electric pusher propeller; brushless 700 W motor
• Battery: 14.8 V, 6000 mAh
• Camera: 16.1 MP mirrorless APSC
• Endurance: 50 min
• Range: 60 km (37 mi)
Engineered to help mapping and surveying professionals who require the highest accuracy work more efficiently, the Trimble UX5 sets a new standard in mapping and surveying by combining a robust and highly user-friendly system with a custom-designed camera that offers the most impressive deliverables.
Why the Trimble UX5 UAV?
• It's an economical solution that allows companies of all sizes to engage in aerial mapping.
• It's a safe alternative to dangerous and limiting areas.
• Efficient, giving the ability to collect and process data faster than traditional terrestrial-based survey technology.
• Simple data processing with Trimble Business Center photogrammetry module.
• Versatile for use in a range of industries.
Features
All-weather, all-terrain performance
Now you don't need to worry about a bit of rain or wind, hot deserts or snowy terrain, because the UX5 is capable of doing the job in just about all weather conditions.
State-of-the-art camera
The UX5 may be small and lightweight, but its camera is a beast. A large imaging sensor captures sharp, color-rich images, even in dark and cloudy conditions. Gain maximum photogrammetric accuracy.
Reverse thrust for precise landings in confined spaces
Don't let small areas prevent you from obtaining accurate data and orthophotographs. The landing angle and trajectory is compact and allows landings in confined spaces.
Fully automated Trimble Access workflows for ease- of-use
Get ready for take-off in a mere 5 minutes. The Trimble Access Aerial Imaging application loaded onto the Trimble Tablet Rugged PC operates the Trimble UX5 and is a single software tool for planning your aerial missions, performing pre-flight checks and monitoring your flights.
