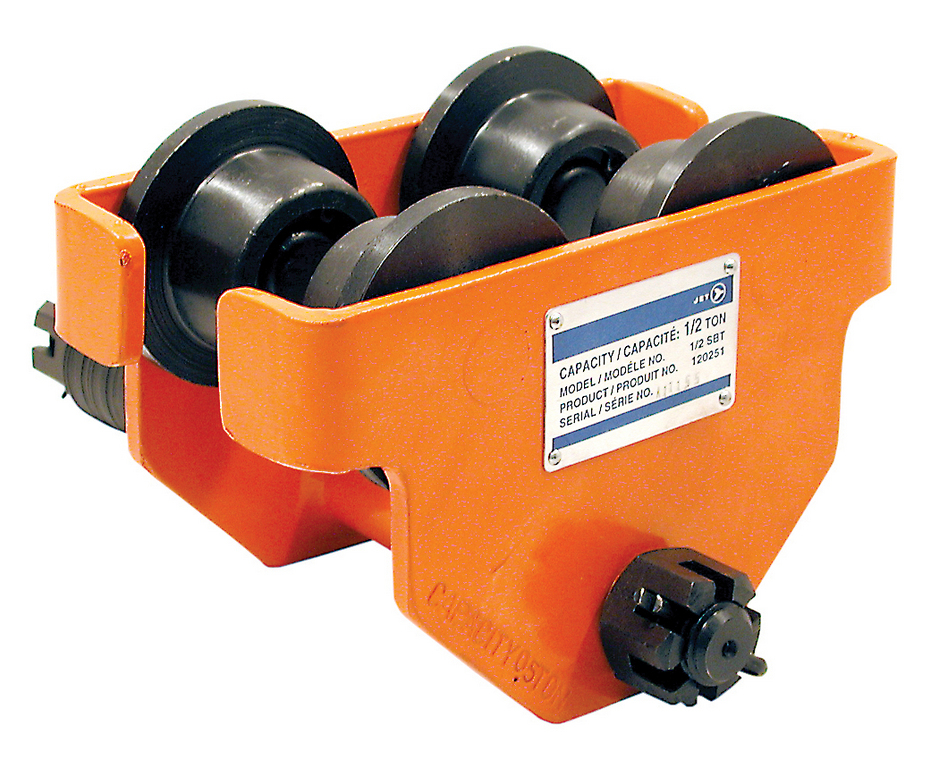

1/2 Ton SBT Series Manual Trolley - Heavy Duty
|
Product Category: Trolleys & Clamps
• Load is moved by pulling on hoist load chain in direction of travel
• Double sealed ball bearings for long life
• Specially hardened steel wheels meet ANSI B30.11 specifications (Certificate included)
• Specially designed integrated drop stops/bumpers take the load in the event of wheel failure and prevent wheels from contacting other trolleys on the track
• Adjustable to fit various sizes of flanges and beams
• Comes equipped for use on up to 8" beam widths
• Can be installed or removed at any point along the track
• Use on straight or curved H, I, W and S-beams
• INSERT HAND DRAWN DIAGRAM
• heavy duty icon
Specs
Shipping Weight: 20.7 lb (9.4 kg)
Product Weight: 19.8 lb (9 kg)
Rated Capacity (Tons): 1/2
Rated Capacity (lbs): 1,100
I-Beam Flange Width (H): 3-1/4" — 8-1/32"
Minimum Radius Curve: 36"
Diameter Length of Chain:
Description:
A: 12-13/32"
B: 8-1/2"
C: 8-1/8"
D: 2-1/4"
E: 1-1/4"
F: 1/8"
G: 4-41/64"
