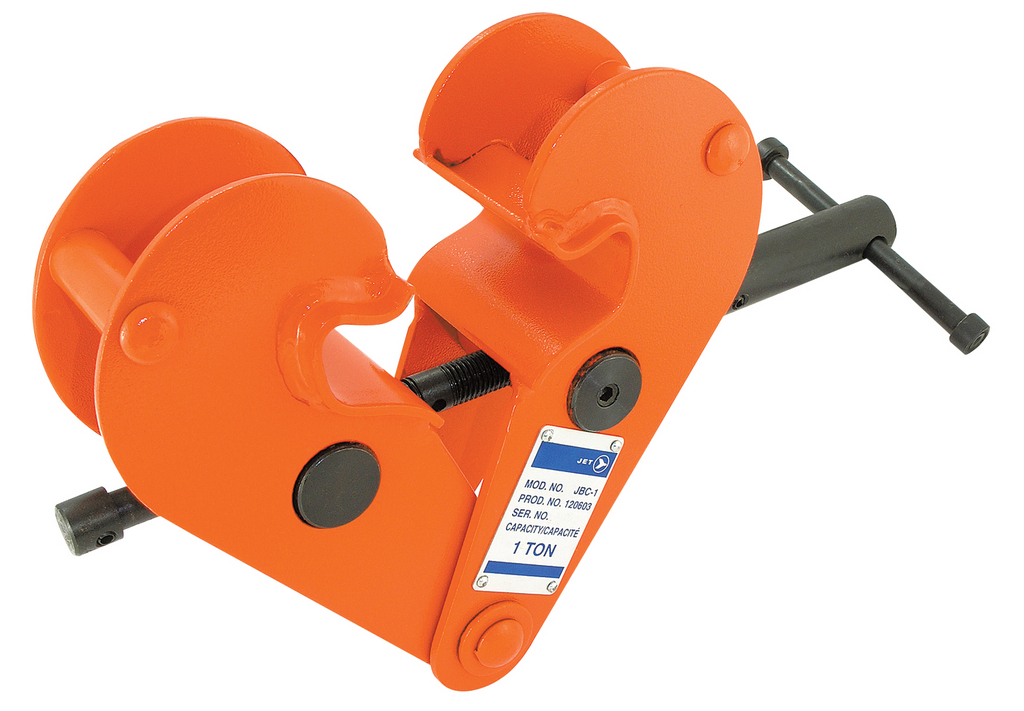

1 Ton Beam Clamp With Locking Screw - Heavy Duty

• Can be used for suspending loads or inverted as a clamp for vertical lifting of flanged beams
• Jaw design reduces stress on beam flanges by distributing load away from edges
• Equal width jaws assure best possible stability
• Threaded handle allows for ease of installation and portability
• Special locking screw mechanism ensures the unit stays tight, increasing safety
• Can be adjusted to fit securely on a wide range of flange and beam widths
• Built-in suspension bar provides ultra low headroom
• Meets ANSI B30.11 and B30.20 specifications (Certificate included)
• Tested to 150% of rated capacity
• Maximum angle from vertical 15° when used for lifting beams
• INSERT HAND DRAWN DIAGRAM
• heavy duty icon

Specs
Shipping Weight: 13 lb (5.9 kg)

Product Weight: 11.836 lb (5.38 kg)

Capacity (Tons): 1

Rated Capacity (lbs): 2,000

Rated Flange Width: 2.95" — 9.05"

Maximum A: 9.65"

Minimum B: 7.48"

Maximum B: 14.17"

C: 2.76"

D: .20"

E: 8.46"

Maximum F: 5.31"

Minimum F: 3.07"

Minimum G: 1.10"

H: .80"
