Tremcar Inc./Asybco

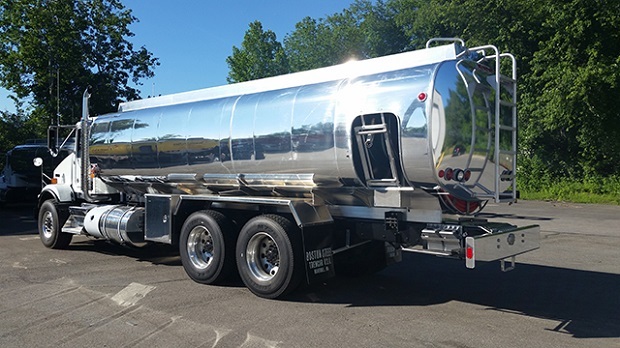

Boston tank truck
|
DESIGN: Deep dished, semi rectangular heads and baffles for strength and a low profile center of gravity. Baffle openings are offset and reinforced to prevent product surge. A wide selection of head sizes allows custom fabrication to chassis wheelbases.
Technical specifications
CODE: All tanks built to DOT 406 specifications / ASME “U” Stamp and National “R” Stamped certified
CAPACITY: 400 to 6000 USG
COMPARTMENTS: Various
MANHOLE COVERS 16″ Betts Tiona PAF
TANK MOUNTINGS: 313 extruded wide base rails with retainer flanges to hold hardwood or rubbers sills
BOTTOM LOAD – VAPOR RECOVERY: Top and bottom loading systems available. Vapor recovery equipement to meet Federal/State regulations. Split compartment tanks with double bulkheads for oil and gasoline loads.
CABINETS: Hand crafted, embossed and reinforced for strength. Many sizes and configurations available.
PUMPING EQUIPMENT: Variable pumping speeds, automatic throttle controls, pressure relief valves. Rear vernier flow control increases engine speed from idle to pumping. Pressure relief controls for pumps and associated pumping equipment.
FENDERS: Heavy duty “Jeep” style fenders
LADDERS: Wide front and rear ladders w/large top step landing for safety.
BUMPER: The rear DOT 406 bumper consists of .250 steel rectangular tubing built into the truck frame with .250″ frame pan. Standard width is 78″ with an option for 96″
LIGHT & WIRING: Betts LED
FALL RESTRAINT: Available per customer request
HOSE REELS: Boston Steel polished stainless steel No. 2000 single wrap reel. Twin reel system for small and large drops from the same tank (or mixed loads). Three wrap reel.
