Tremcar Inc./Asybco

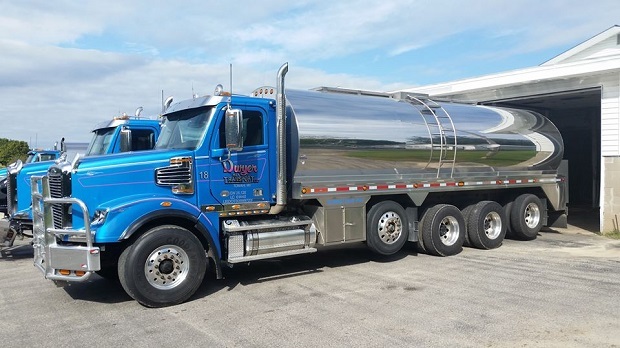

Farm pickup – Truckmount
|
Tank for milk collection at the farm (FPU) mounted on a truck chassis provided by the customer. Available with single to quad axles configurations to meet each province’s or State’s regulations.
Technical specifications
Code 3a sanitary standards
Pression / température Atmospheric, 180° f
Forme Elliptical
Number of compartments Single 5 000 or 6 000 usg
Inner shell T-304, stainless steel, #4 finish, dairy polish
Caps T-304, stainless steel, #4 finish, dairy polish
Reinforcing rings Stainless steel channels with stainless steel flat pads
Insulation 3″, high density polystyrene, heads and bottom sprayed with urethane
Frame T-304, stainless steel with boxed crossmembers and outriggers
Outer shell Prebuff bright annealed
Ends Front: t-304 stainless steel, #4 finish — lockformed
Rear T-304 stainless steel, #4 finish — lockformed
Outlet valves One, 3″, lc thomsen valve with acme connections
Manhole Tremcar 4 lugs, 18″ diameter, with dust cover and white sanitary gasket
Vents One runovent, per manhole
Pumping cabinet At rear, low model with door holders and easy to replace gasket
Pump Jabsco 2″, model 15170 or 2 1/2″, model 15173
Motor 220 v / 1 / 60, 2 h.p. or 3 h.p.
Reversible switch Klockner moeller, with 14/3 twist cord
Ice box Nasco, with sliding support
Light in cabinet One halogen heating lamp, with on/off switch
Transfer hose 33’, sanitary hose, available 2″ or 2 1/2 “
Fenders Stainless steel walkway (skirting)
Mudflaps Tremcar, white mudflaps
Ladders One on each side
Light & wiring Grote, lighting and wiring system with back up lights
