Tremcar Inc./Asybco

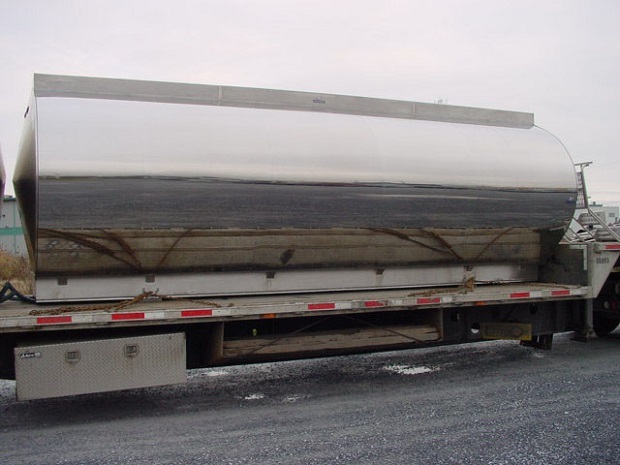

Food grade – Truckmount

Choice of capacity and compartments depending on the transporter’s needs.

Food grade – Truckmount
Technical specifications

Code Sanitary
Working pressure / temp Atmospheric 180 ° F
Shape Elliptical
Number of compartment One
Capacity 3 500 IG
Inner tank T 304 stainless steel – 2B Finish
Head T 304 stainless steel – 2B Finish
Reinforcing ring Stainless steel top hat section, fully welded on barrel
Insulation High density styrofoam 3″ thickness, heads and underside with fiberglass
Frame T304 stainless steel with boxed cross members/outriggers
Outer shell Prebuff
Outer head Front: T304 stainless steel – #4 finish – lockformed Rear: T304 stainless steel – #4 finish – lockformed
Manhole Betts 20” opening with Buna gasket and vent
Vent 3” npt half nipple
Ladder 1” stainless steel tubing with platforms steps and catwalk
