Thermon Heating Systems

TubeTrace with VSX-HT

Freeze protection
Medium to high process temperature maintenance
Steam clean/purge
Certified for use in ordinary (nonclassified) areas and in potentially explosive atmospheres

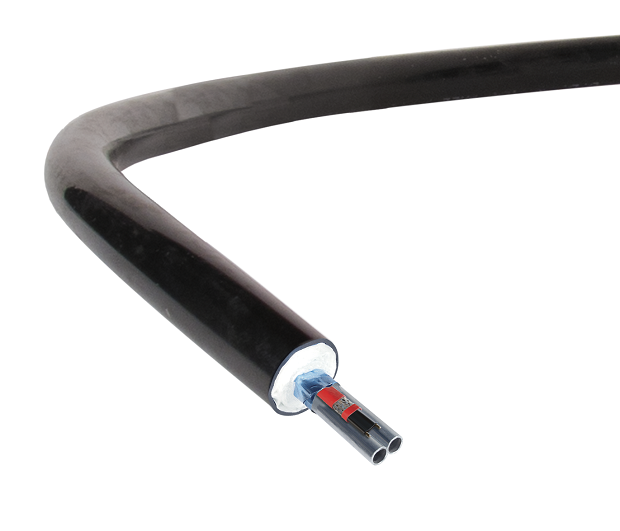

TubeTrace with VSX-HT

TubeTrace, with “cut-to-length” VSX-HT self-regulating heat tracing, is designed to provide freeze protection or temperature maintenance for tubing where high temperature exposure capability is possible. VSX-HT withstands intermittent temperature exposures of 250°C (482°F).

Self-regulating VSX-HT heat tracing
Varies in response to the surrounding conditions along the entire length of a circuit.
Lower risk of overheating the tube or product.
Installed cost is lower because “cut-to-length” VSX-HT makes end connections easy with minimal waste.
