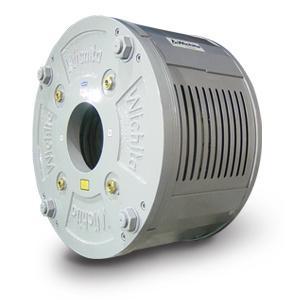

AquaMakks Water Cooled Clutches & Brakes
|
AquaMaKKs™ clutches and brakes are pneumatically or hydraulically controlled and water cooled. They consist of a series of alternating friction discs and water jackets. Torque is transmitted by applying axial force from the pneumatic, hydraulic, or spring set actuator. Copper wear plates are used for excellent heat dissipation. Models are available in 19", 25", and 36" diameter sizes. Torque ranges from 66,500 in.lb. @ 80 PSI to 1,611,000 in.lbs. @ 100 PSI.
AquaMaKKs™ clutches and brakes are pneumatically or hydraulically controlled and water cooled. They consist of a series of alternating friction discs and water jackets. Torque is transmitted by applying axial force from the pneumatic, hydraulic, or spring set actuator. Copper wear plates are used for excellent heat dissipation. Models are available in 19", 25", and 36" diameter sizes. Torque ranges from 66,500 in.lb. @ 80 PSI to 1,611,000 in.lbs. @ 100 PSI.
Features include:
Durable air tube design with high strength reinforced neoprene air-tubes, offering longer service life
Water channels for balanced water flow for the highest thermal capacity
Long-lasting friction material with minimal wear on mating copper
Copper alloy wear plates enable higher heat transfer than any other metals
Hub spline provides perfect alignment of rotating discs
External air & water connections
Release springs ensure complete disengagement
Adjustment for wear is easily accomplished by removing shims without any unit disassembly
Unique torque pin column arrangement provides structural integrity of case
Open case design with covers for safe, simple, visual inspection and easy maintenance
