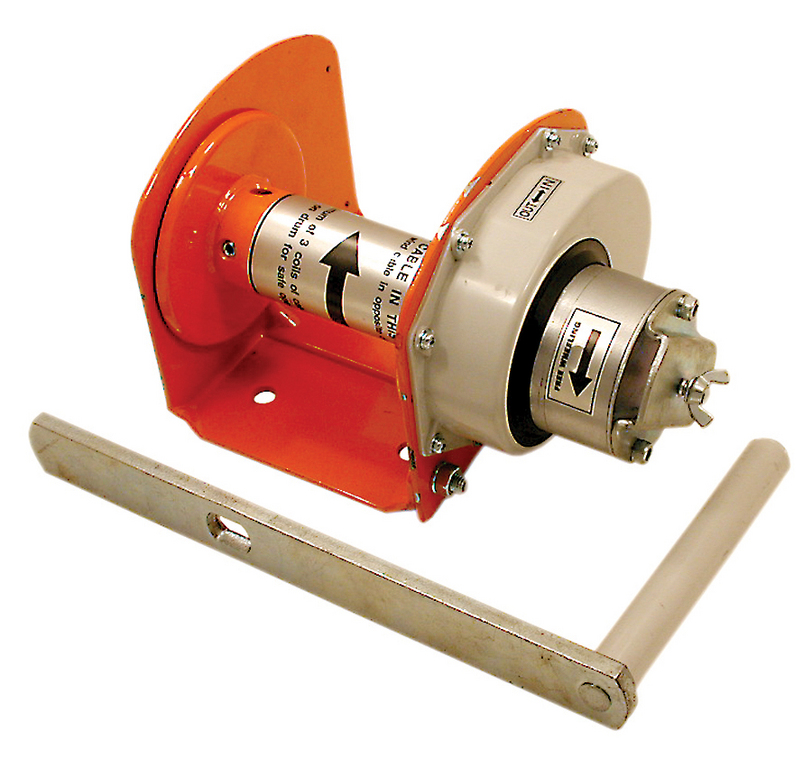

220 lb Capacity Hand Winch - Super Heavy Duty

• Chain hoist type dual pawl Weston brake for ultimate load control
• All braking components are plated with a rust resistant finish
• Non-asbestos brake discs use high quality low abrasion aramid fibre material for a safer and healthier environment
• Free wheeling feature enables the operator to pay out cable fast
• Will not free wheel under load
• Dust and weather-tight housing using an ABS plastic cover to seal out dust and rain
• Handle grip is designed to allow maximum comfort during winding
• Handle length is easily adjustable

Specs
Shipping Weight: 31.9 lb (14.5 kg)
Product Weight: 17.6 lb (8 kg)
Rated Lifting Capacity (lbs): 220
Drum Capacity: 5/32" x 131'
Cable length pulled per turn (in): 6-1/2"
Force req. to lift Capacity (lbs): 26
Handle length (in): 9-13/16"
Gear Ratio: 1:1
Load Capacity (lbs):
Hub Diameter:
Reel Capacity — Rope:
Reel Capacity — Cable:
A: 1-7/8"
B: 4-1/32"
C: 4-11/16"
D: 3-1/4"
E: 7/16"
F: 15-15/16"
G: 9-13/16"
H: 5-51/64"
I: 3-35/64"
J: 6-19/64"
K: 9-5/8"

Product Parts
