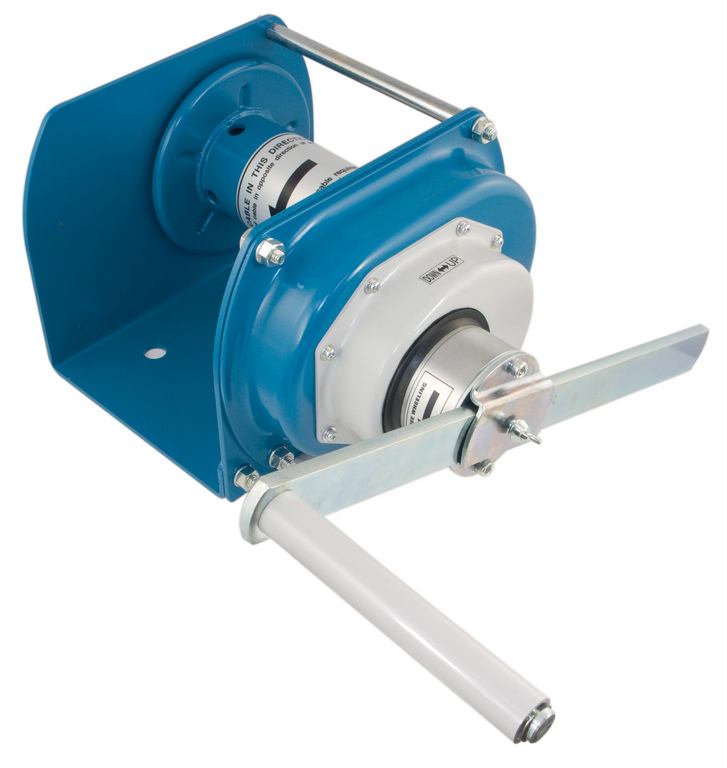

882 lb Capacity Hand Winch - Super Heavy Duty

• Chain hoist type dual pawl Weston brake for ultimate load control
• All braking components are plated with a rust resistant finish
• Non-asbestos brake discs use high quality low abrasion aramid fibre material for a safer and healthier environment
• Free wheeling feature enables the operator to pay out cable fast
• Will not free wheel under load
• Dust and weather-tight housing using an ABS plastic cover to seal out dust and rain
• Handle grip is designed to allow maximum comfort during winding
• Handle length is easily adjustable

Specs
Shipping Weight: 39.6 lb (18 kg)
Product Weight: 30.8 lb (14 kg)
Rated Lifting Capacity (lbs): 882
Drum Capacity: 1/4" x 98'
Cable length pulled per turn (in): 2-3/16"
Force req. to lift Capacity (lbs): 25
Handle length (in): 13-3/4"
Gear Ratio: 4.33:1
Load Capacity (lbs):
Hub Diameter:
Reel Capacity — Rope:
Reel Capacity — Cable:
A: 2-3/4"
B: 5-33/64"
C: 5-29/32"
D: 3-15/16"
E: 19/32"
F: 19-13/64"
G: 13-3/4"
H: 7-11/64"
I: 5-1/8"
J: 9-31/32"
K: 12-15/16"
