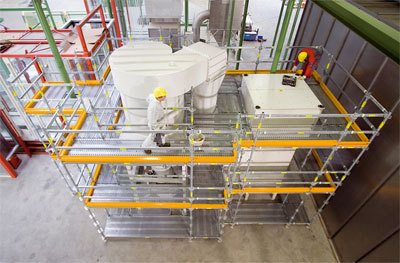

PERI UP Rosett Flex Industrial Scaffolding

• Adaptable

The main components of the modular scaffolding, such as standards, ledgers and decks, have a uniform length and width grid arrangement of 25 or 50 cm. This allows almost any adjustments to be made to suit each particular project which had up-to-now only been possible with tube and coupler scaffolding systems.

• Safe working conditions

For the new PERI UP industrial decks, a 25 cm width was selected. This means working platforms can be completely covered without any gaps.



All decks are provided with an integrated lock against lifting and have a non-slip perforated surface. The small overall height and the selected profile cross-section allow ergonomical transportation by hand. Protruding pipes or diagonals can be built around as the deck sections can be overlapped by about 1.5 cm. Between the decking, ledgers can be installed at any time.

• Fast assembly

The gravity lock - the self-locking ledger connection - allows fast and safe assembly. When installing, the wedge falls through its own force of gravity into the rosett opening and locks automatically. The rectangular profile prevents the mounting of tubes and couplers on parts which are not suitable.

• High load-bearing capacity

Due to the special node rigidity and the enormous loadability of the connection, PERI UP industrial scaffolding has a high load-bearing capacity.
