Shear Power Corp.

XR120

• Hydraulic excavator 100 - 150 tons
• Mass of ripper (less top bracket) 11000 kg
• Hydraulic working pressure 22 - 24 MPa
• Hydraulic return pressure 0.6 MPa
• Hydraulic oil flow 600 L/min
• Case drain maximum pressure 0.4 MPa
• Frequency 1000 1/min

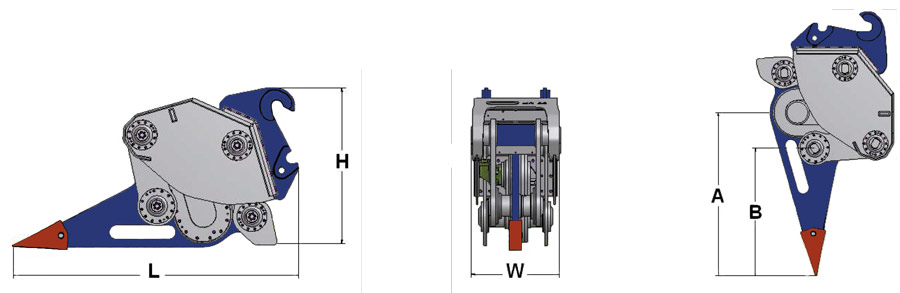

• Dimensions L x W x H 400x132x282 cm
• Accumulator pressure 0.6 MPa

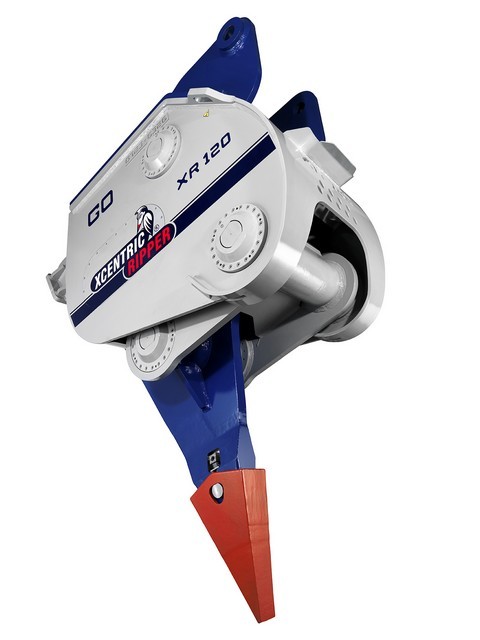

XR120
The Xcentric Ripper is an excavator attachment tool developed with the latest advances in excavation and demolition systems in mind. It meets the highest standards. It was patented by Xcentric Ripper international/Grado Cero Sistemas, S.LU., a trailblazer in the industry. Trough it's design an outstanding performace has been achieved, allowing more efficient work.

Made completely of wear-resistant steel, this attachment device is almost maintenance free, less noisy than any other excavation tool, can be used under water without loss of performance, and adapted to countless work sites. Thanks to it's uncomplicated mechanical design, which has no pricey components, the maintenance cost are very low and down times are ignorable.

The XR120 is our biggest Series Production model. It is currently the largest serial attachment manufactured worldwide for quarrying. Production volumes up to 250 m3 per hour can be achieved. Ideal for mining, which brings great value and versatility to large tonnage excavators. Very appropriate for extracting marine works in dredging projects with adverse conditions.
